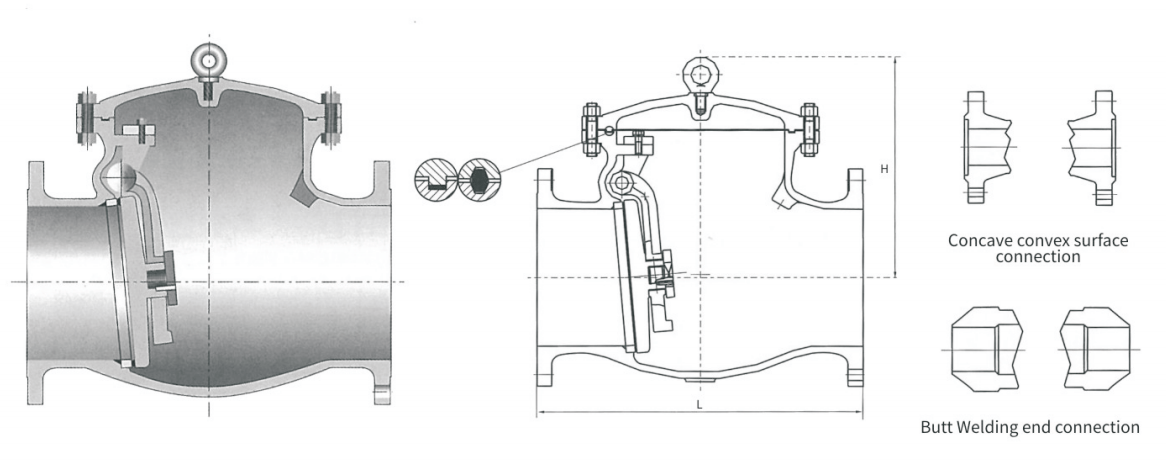

CHINESE STANDARD CAST STEEL SWING CHECK VALVE

Negotiable
Shanghai Huhang Valves Co., Ltd.
China
No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City
13162305541
13706691500
Online Contact
Favorite
Product Parameters

MAIN DIMENSION AND WEIGHT

PN16 PN25 PN40 PN64 PN100
SIZE L H WT (PN16) WT (PN25) SIZE
mm		 L
mm		 H
mm		 WT
Kg		 SIZE
mm		 L
mm		 H (PN64)
mm		 H (PN100)
mm		 WT (PN64) WT (PN100)
mm mm mm Kg Kg mm mm mm   mm mm mm mm Kg Kg
50 230 165 22 22 50 230 180 27 50 300 190 190 32 43
65 290 180 26 30 65 290 195 33 65 340 207 213 45 48
80 310 190 33 35 80 310 205 37 80 380 220 240 48 72
100 350 208 39 52 100 350 220 56 100 430 260 270 72 108
125 400 230 57 73 125 400 248 85 125 500 318 316 108 130
150 480 270 80 103 150 480 270 110 150 550 297 365 155 217
200 600 95 135   200 533 350 140 200 650 357 420 218 341
250 730 348 175 196 250 622 410 210 250 775 405 480 341 472
300 850 390 260 285 300 711 430 392 300 900 465 510 472 620
350 980 430 360 388 350 838 518 400 350 1025 514 550 627 880
400 1100 468 496 520 400 864 560 560 400 1150 568 600 882 1105
500 1250 525 588 641 500 1016 618 650
