PRESSURE SEAL GATE VALVE

Negotiable
Shanghai Huhang Valves Co., Ltd.
China
No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City
13162305541
13706691500
Online Contact
Favorite
Product Parameters

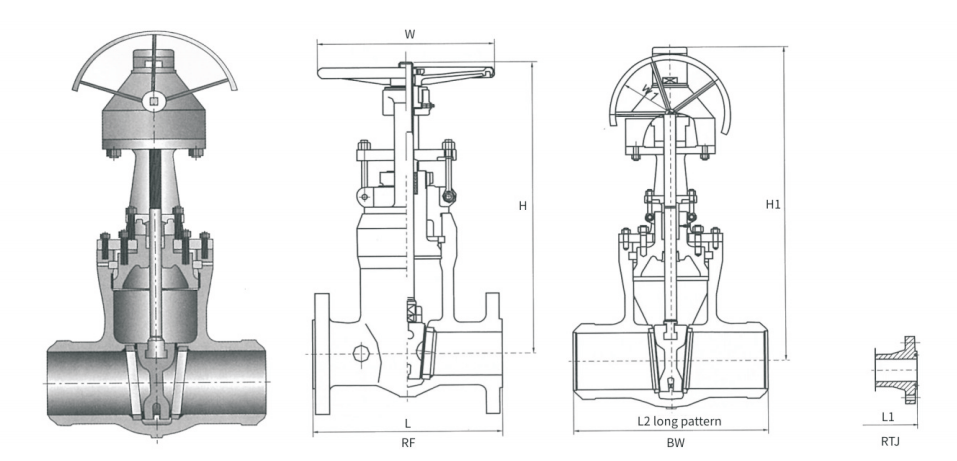

MAIN DIMENSION AND WEIGHT

CLASS 600
SIZE L HANDWHEEL GEAR TRQ WT(RF)
NPS
inch		 DN
mm		 RF(BW long pattern)
mm		 BW short pattern
mm		 RTJ
mm		 W
mm		 H
mm		 W1
mm		 H1
mm		 N.m Kg
2 50 292 178 295 250 425     39 35
2-1/2 65 330 216 333 250 475     57 50
3 80 356 254 359 300 553 250 759 74 65
4 100 432 305 435 350 660 310 734 123 120
6 150 559 457 562 500 718 310 956 314 220
8 200 660 584 664     440 1112 518 310
10 250 787 711 791     440 1417 935 620
12 300 838 813 841     520 1650 1215 900
14 350   889 892     520 1780 1486 1200
16 400   991 994     600 2100 2050 1700
18 450   1092 1095     600 2230 2727 1850
20 500   1194 1200     600 2380 3792 2800
24 600   1397 1407     700 2860 5587 4450
26 650   1448 1461     700 2950 7374 4900
28 700   1549 1562     800 3041 9606 6100
30 750   1651 1664     800 3250 11930 7100
32 800   1778 1794     800 3520 14473 7700



CLASS 900
SIZE L HANDWHEEL GEAR TRQ WT(RF)
NPS
inch		 DN
mm		 RF(BW long pattern)
mm		 BW short pattern
mm		 RTJ
mm		 W
mm		 H
mm		 W1
mm		 H1
mm		 N.m Kg
2 50 368 216 371 300 521 310 630 71 65
2-1/2 65 419 254 422 350 570 310 675 102 80
3 80 381 305 384 350 629 310 720 125 95
4 100 457 356 460 400 715 310 782 198 150
6 150 610 508 613 600 848 310 1042 447 340
8 200 737 660 740     440 1132 812 550
10 250 838 787 841     520 1486 1353 900
12 300 965 914 968     520 1587 1980 1240
14 350 1029 991 1038     600 1730 2602 1700
16 400 1130 1092 1140     600 1958 3820 2400
18 450 1219   1232     600 2176 5061 2930
20 500 1321   1334     700 2425 7123 3750
24 600 1549   1568     800 2672 10851 6220
26 650 1664         800 2870 13363 7400
28 700 1778         800 3068 18177 8670
30 750 1892         800 3300 21683 9750
32 800 2004         1000 3506 26953 11400



CLASS 1500
SIZE L HANDWHEEL GEAR TRQ WT
NPS
inch		 DN
mm		 RF(BW long pattern)
mm		 BW short pattern
mm		 RTJ
mm		 W
mm		 H
mm		 W1
mm		 H1
mm		 N.m RF
Kg		 BW short pattern
Kg
2 50 368 216 371 350 580 310 660 115 65 52
2-1/2 65 419 254 422 350 633 310 760 164 100 78
3 80 470 305 473 400 674 310 819 232 145 105
4 100 546 406 549 450 747 440 925 370 220 160
6 150 705 559 711 680 850 520 1026 819 550 425
8 200 832 711 842     600 1290 1538 930 725
10 250 991 864 1001     600 1510 2655 1450 1070
12 300 1130 991 1146     600 1707 3652 2500 1820
14 350 1257 1067 1276     600 1848 5194 2890 1900
16 400 1384 1194 1406     700 1971 6955 3800 2900
18 450 1537 1346 1559     700 2168 9121 5950 4600
20 500 1664 1473 1686     800 2450 12887 7350 5700
24 600 1943 1676 1971     1000 2720 19537 10600 8250



CLASS 2500
SIZE L HANDWHEEL GEAR TRQ WT
NPS
inch		 DN
mm		 RF(BW long pattern)
mm		 BW short pattern
mm		 RTJ
mm		 W
mm		 H
mm		 W1
mm		 H1
mm		 N.m RF
Kg		 BW short pattern
Kg
2 50 451 279 454 350 567 310 660 175 90 65
2-1/2 65 508 330 514 350 615 310 765 295 145 112
3 80 578 368 584 400 655 310 838 333 170 128
4 100 673 457 683 550 742 440 965 518 345 225
6 150 914 610 927 680 870 520 1116 1264 810 500
8 200 1022 762 1038     600 1310 2538 1330 870
10 250 1270 914 1292     600 1518 4276 2335 1430
12 300 1422 1041 1444     700 1955 6998 3720 2458
14 350 1549 1118       700 1910 9343   2895
16 400 1676 1245       800 2050 13464   4000
18 450 1829 1397       800 2136 20409   4850
20 500 1856 1549       1000 2500 26894   6100
24 600 2235 1727       1000 2750 32261   8800
