DESIGN AND MANUFACTURING STANDARDS
Design and manufacturing according to API 602, BS 5352, ASME B16.34
End dimension according to ASME B12.01, ASME B16.11
Inspection and test according to API 598
1/1

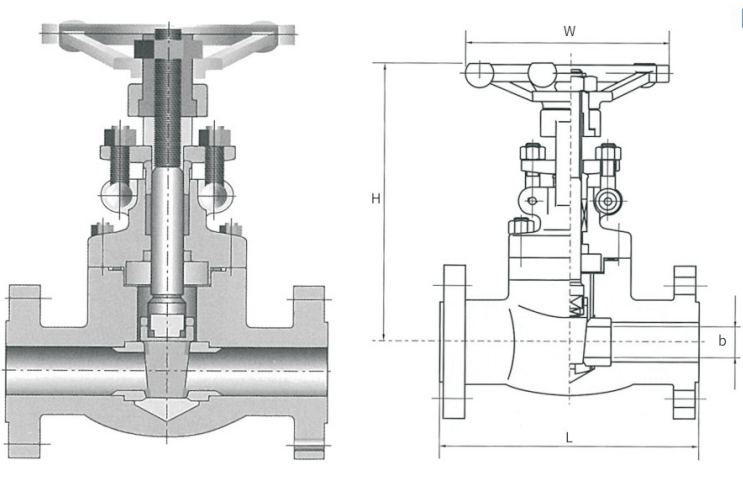

FORGED STEEL FLANGED, BUTT WELDED GATE VALVE
Negotiable
China
No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City
13162305541
13706691500
gjb-cln36661@shhh-valve.com
Product Introduction
Product Parameters
MAIN DIMENSION AND WEIGHT
|
CLASS 150~600 |
|||||||||||
|
Size |
Class Rate |
L (mm) |
L1 (mm) |
L2 (mm) |
H Open (mm) |
W (mm) |
WT (Kg) |
||||
|
inch |
mm |
Reduce Bore |
Full Bore |
Reduce Bore |
Full Bore |
Reduce Bore |
Full Bore |
||||
|
1/2 |
15 |
150 300 600 |
108 140 165 |
119 151 163.5 |
108 140 165 |
166 |
169 |
100 |
100 |
4.5 4.8 5.9 |
5 5.2 5.9 |
|
3/4 |
20 |
150 300 600 |
117 152 190 |
130 165 190 |
117 152 190 |
169 |
193 |
100 |
125 |
5.2 6.2 7.4 |
6.1 6.3 7.5 |
|
1 |
25 |
150 300 600 |
127 165 216 |
140 178 216 |
127 165 216 |
193 |
230 |
125 |
160 |
8.2 9.3 10.4 |
8.4 8.6 10.2 |
|
1-1/4 |
32 |
150 300 600 |
140 178 229 |
153 191 229 |
138 178 229 |
230 |
246 |
160 |
160 |
11.5 14 16.2 |
14.3 14.5 16.7 |
|
1-1/2 |
40 |
150 300 600 |
165 190 241 |
178 203 214 |
165 191 241 |
246 |
283 |
160 |
180 |
12.5 15.5 17.5 |
15.4 15.6 17.4 |
|
2 |
50 |
150 300 600 |
178 216 292 |
191 232 295 |
178 216 292 |
283 |
330 |
180 |
200 |
20.3 23.4 28.3 |
22.7 22.8 28.7 |
|
CLASS 900~1500 |
||||||||
|
Size |
L (mm) |
L1 (mm) |
L2 (mm) |
H Open (mm) |
W (mm) |
WT (Kg) |
||
|
inch |
mm |
B.B |
W.B |
|||||
|
1/2 |
15 |
216 |
216 |
216 |
197 |
125 |
6.9 |
7.2 |
|
3/4 |
20 |
229 |
229 |
224 |
197 |
125 |
11.2 |
11.5 |
|
1 |
25 |
254 |
254 |
254 |
224 |
160 |
12.8 |
15.6 |
|
1-1/4 |
32 |
279 |
279 |
279 |
237 |
160 |
16.0 |
16.2 |
|
1-1/2 |
40 |
305 |
305 |
305 |
276 |
180 |
21.0 |
22.6 |
|
2 |
50 |
368 |
371 |
368 |
320 |
200 |
27.1 |
28.2 |
B.B-Bolted Bonnet W.B-Welded Bonnet
