CAST STEEL SWING CHECK VALVE

Name: CAST STEEL SWING CHECK VALVE
Availability: InStock

Negotiable

Shanghai Huhang Valves Co., Ltd.

Located Region:

China

Address:

No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City

Biz Consulting:

13162305541

WhatsApp:

13706691500

E-mail:

gjb-cln36661@shhh-valve.com

Online Contact

Favorite

DESIGN AND MANUFACTURING STANDARDS

Design and Manufacturing according to API 6D BS 1868, ASME B 16.34, GB 12236, GB 12224

Face to face according to ASME B16.10, API 6D, GB 12221

End Dimension as per ASME B16.5, ASME B16.25, ASME B16.47, GB/T9113

Inspection and test as per ISO 5208, API 598, BS 6755, GB/T 26480, GB/T 13927, API 6D

AMERICAN STANDARD PRESSURE TEST (MPa) (Body WCB)

Pressure Rate (Class)	Shell Test	High Pressure Seat Test	Low Pressure Seat Test
150	3.0	2.2	0.6
300	7.7	5.6
600	15.3	11.2
900	23	16.8
1500	38.3	28.1
2500	63.8	46.8

CHINESE STANDARD PRESSURE TEST (MPa) (Body WCB)

Pressure Rate (Class)	Shell Test	High Pressure Seat Test	Low Pressure Seat Test
1.6	2.4	1.76	0.6
2.5	3.75	2.75
4.0	6.0	4.04
6.4	9.6	7.04
10.0	15.0	11.0

MAIN COMPONENTS MATERIALS
Components Description	Cast Steel		Alloy Steel			Stainless Steel
Body	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	CD3MN
Cover	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	CD3MN
Disc	A105	LF2	F11	F22	F5	A182 F304	F316	F304L	F316L	F51
Hinge pin	A270 410	A276 410	A276 410	A276 410	A276 410	A276 304	A276 316	A276 304L	A276 316L	F51
Fork part	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	CD3MN
Stud	A193 B7	A320 L7	A193 B16	A193 B16	A193 B16	A193 B8	A193 B8M	A193 B8	A193 B8M	A193 B8M
Nut	A194 2H	A194 7	A194 7	A194 7	A194 7	A194 8	A194 8M	A194 8	A194 8M	A194 8M

Note: 1. All parts of the valve are made of materials that comply with ASTM standards;

2.The above is the Huhang standard configuration. If the customer has special requirements, Huhang can select materials according to their working conditions.

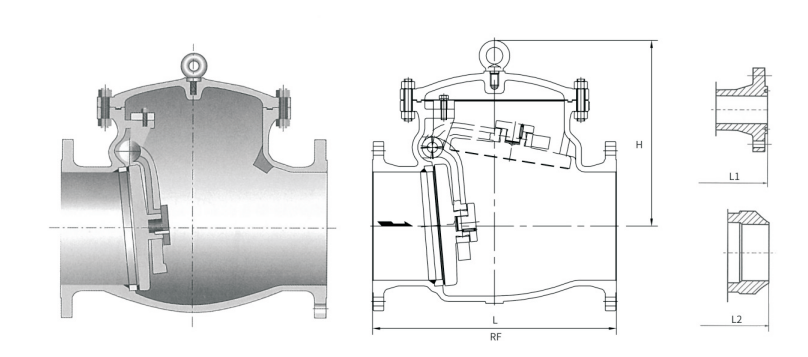

CLASS 150					CLASS 300			CLASS 600
Size		L	H	WT	L	H	WT	L		H	WT
NPS mm	DN mm	RF (BW) mm	mm	(RF) Kg	RF (BW) mm	mm	(RF) Kg	RF (BW) mm	RTJ mm	mm	(RF) Kg
2	50	203	189	16	267	201	21	292	295	207	27
2-1/2	65	216	198	20	292	215	37	330	333	227	32
3	80	241	226	25	318	249	46	356	359	251	49
4	100	292	275	40	356	297	71	432	435	320	86
5	125	330	280	67	400	305	100	508	511	310	165
6	150	356	312	93	445	321	130	559	562	339	185
8	200	495	417	134	533	429	202	660	664	468	365
10	250	622	459	199	622	477	296	787	791	524	557
12	300	699	532	305	711	553	458	838	841	589	670
14	350	787	550	370	838	570	583	889	892	622	944
16	400	864	667	542	864	696	754	991	994	746	1300
18	450	978	684	750	978	695	935	1092	1095	786	1760
20	500	978	750	900	1016	742	1155	1194	1200	874	2200
24	600	1295	871	1200	1346	922	1408	1397	1407	874	3350
26	650	1295	910	1276	1346	930	2375	1448	1461	1110	3740
28	700	1448	1047	1855	1499	1026	2800	1600	1613	1244	4630
30	750	1524	1095	2190	1594	1130	3680	1651	1664	1300	5560
32	800	1727	1150	2430	1727	1180	3880	1778	1794	1365	6750
36	900	1956	1182	3130	2083	1235	5030	2083	2099	1599	8200
40	1000	1981	1360	4200	2250	1385	6300	2286		1695	9000
42	1050	2032	1410	5100	2312	1460	7100	2438		1700	10000
48	1200	2083	1640	6700	2413	1810	9300	2540		2150	11200

CLASS 900						CLASS 1500				CLASS 2500
Size		L		H	WT	L		H	WT	L		H	WT
NPS mm	DN mm	RF (BW) mm	RTJ mm	mm	(RF) Kg	RF (BW) mm	RTJ mm	mm	(RF) Kg	RF (BW) mm	RTJ mm	mm	(RF) Kg
2	50	368	371	233	58	368	371	229	66	451	454	250	98
2-1/2	65	419	422	245	76	419	422	255	84	508	514	275	175
3	80	381	384	269	100	470	473	297	123	578	584	370	195
4	100	457	460	337	140	546	549	357	196	673	683	465	380
6	150	610	613	424	294	705	711	490	481	914	927	540	800
8	200	737	740	542	700	832	841	565	824	1022	1038	770	2000
10	250	838	841	559	744	991	1000	680	1252	1270	1292	850	3700
12	300	965	968	685	870	1130	1146	840	1440	1422	1445	950	4400
14	350	1029	1038	780	1254	1257	1276	935	1745	1575		1150	7450
16	400	1130	1140	825	1800	1384	1407	1025	2500	1727		1280	9100
18	450	1219	1232	911	2900	1537	1559	1150	5400	1877		1420	11100
20	500	1321	1334	935	3800	1664	1686	1280	6650	2029		1530	12300
24	600	1549	1568	1134	5500	1943	1972	1525	9800	2334		1650	13800
26	650	1651	1673	1220	6600	2083		1800	11500
28	700	1753	1775	1365	7600	2223		2050	13500
30	750	1854	1876	1560	8900	2362		2300	15500
32	800	1956		1650	12100
36	900	2156		1850	15280
40	1000	2286		1995	17650
42	1050	2438		2100	19960
48	1200	2540		2380	29500
