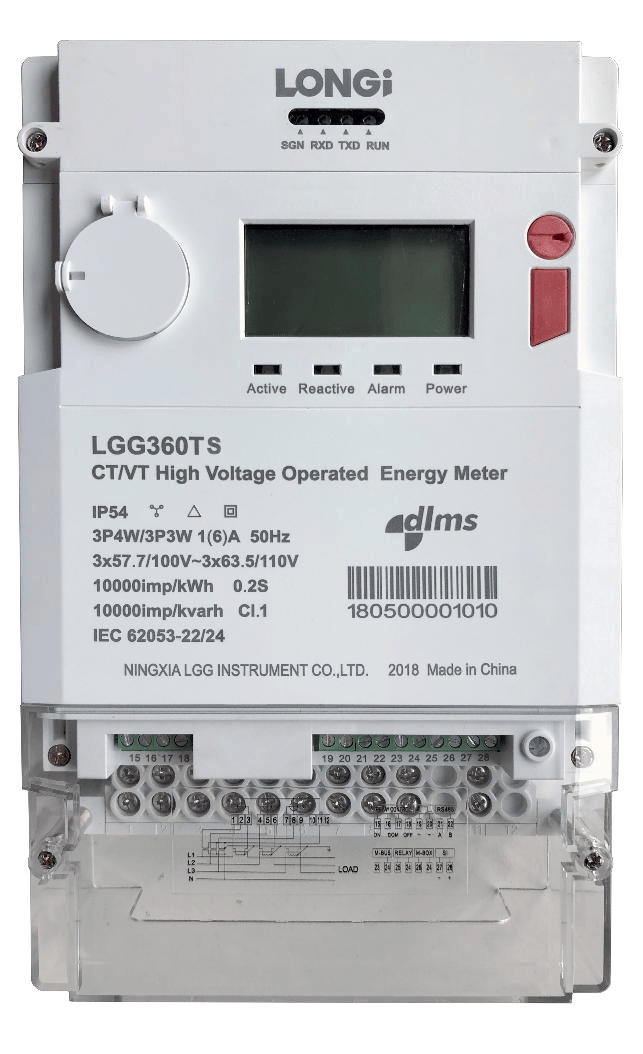

LGG360TS CTVT Meter

Name: LGG360TS CTVT Meter
Availability: InStock

Negotiable

Located Region:

China

Address:

No.25 Guangming Road, Yinchuan (National Level) Economic and Technological Development Zone, Ningxia

Biz Consulting:

18099306469

E-mail:

hhasidier@gmail.com

Online Contact

Favorite

Three Phase 0.2S CTVT High Voltage Operated Meter

Description	Value
Rated voltage	3x57.7/100V~3x240/415V
Operating voltage range	80%Un~120%Un
Rated Current and Starting Current	3x1(6)A and 0.1%Ib
Rated frequency	50Hz
Pulse Constant	10000imp/kWh 10000imp/kvarh
Accuracy Class	Cl.0.2s for Active Cl.1 for Reactive
Power Consumption	Voltage circuit ≤1W or 2VA ,Current circuit < 0.2VA
Battery and Life	Replaceable Lithium battery, life more than 15 years
Tropical working temperature	-40℃ to +70℃, Humidity is up to 95%
EMC Performance	Impulse voltage > 8KV, AC voltage > 4KV, Surge voltage > 4KV, Electrostatic Discharge > 8KV&15KV etc.
Protection class	IP54 comply with IEC60529, Insulation grade II
Housing material	Polycarbonate with non-conductive, high impact, smooth finish, durable, non-flammable, UV stabilized, UV resistant and high resistance to weathering
Dimension	266.5mmX165mmX80mm
