Three Phase 0.5S CT Operated Meter or CT Keypad Meter
1/2

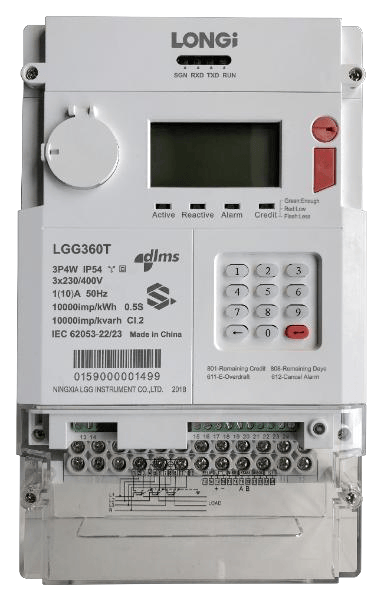

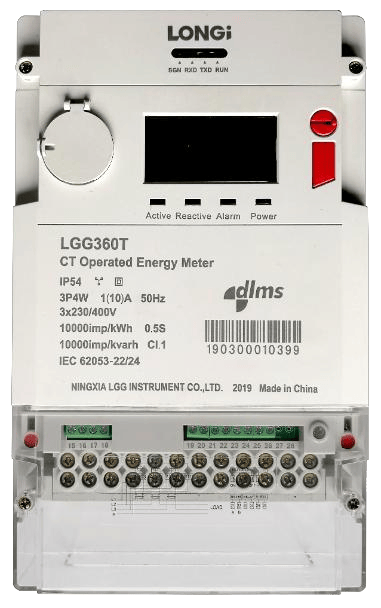

LGG360T CT Meter
Negotiable
China
No.25 Guangming Road, Yinchuan (National Level) Economic and Technological Development Zone, Ningxia
18099306469
hhasidier@gmail.com
Product Introduction
Product Parameters
| Description | Value |
| Rated voltage | 3x220/380V~3x240/415V |
| Operating voltage range | 60%Un~130%Un |
| Rated Current and Starting Current | 3x5(10)A, 3x1(10)A and 0.1%Ib |
| Rated frequency | 50Hz |
| Pulse Constant | 10000imp/kWh 10000imp/kvarh |
| Accuracy Class | Cl.0.5s for Active Cl.1 for Reactive |
| Power Consumption | Voltage circuit ≤1W or 2VA ,Current circuit < 0.2VA |
| Battery and Life | Replaceable Lithium battery, life more than 15 years |
| Tropical working temperature | -40℃ to +70℃, Humidity is up to 95% |
| EMC Performance | Impulse voltage > 8KV, AC voltage > 4KV, Surge voltage > 4KV, Electrostatic Discharge > 8KV&15KV etc. |
| Protection class | IP54 comply with IEC60529, Insulation grade II |
| Housing material | Polycarbonate with non-conductive, high impact, smooth finish, durable, non-flammable, UV stabilized, UV resistant and high resistance to weathering |
| Dimension | 266.5mmX165mmX80mm |
