Three Phase Smart Energy Meter
1/1

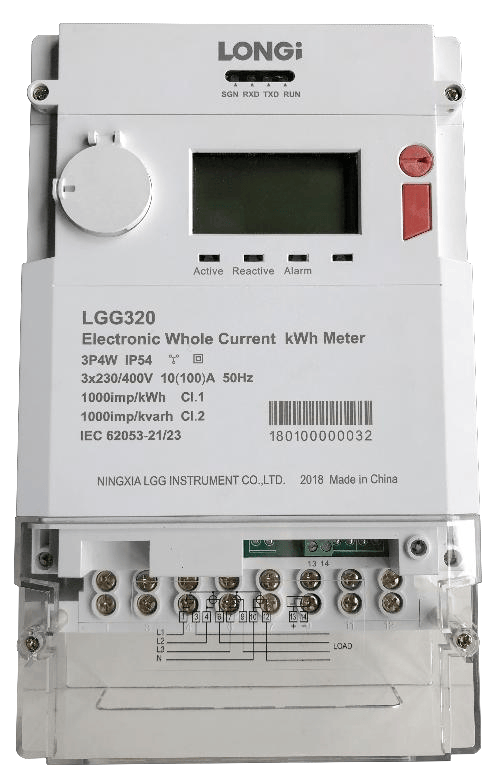

LGG320 3P Meter
Negotiable
China
No.25 Guangming Road, Yinchuan (National Level) Economic and Technological Development Zone, Ningxia
18099306469
hhasidier@gmail.com
Product Introduction
Product Parameters
| Description | Value |
| Rated voltage | 3x220/380V~3x240/415V |
| Operating voltage range | 60%Un~130%Un |
| Rated Current and Starting Current | 5(100)A,5(80)A,5(60)A and 0.4%Ib |
| Rated frequency | 50Hz |
| Pulse Constant | 1000imp/kWh 1000imp/kvarh |
| Accuracy Class | Cl.1 for Active Cl.2 for Reactive |
| Power Consumption | Voltage circuit < 1W or 5VA, Current circuit < 0.2VA |
| Battery and Life | Replaceable Lithium battery, life more than 15 years |
| Tropical working temperature | -40℃ to +70℃, Humidity is up to 95% |
| EMC Performance | Impulse voltage > 8KV, AC voltage > 4KV, Short circuit current > 3KA, Electrostatic Discharge > 8KV&15KV etc. |
| Protection class | IP54 comply with IEC60529 Insulation grade II |
| Housing material | Polycarbonate with non-conductive, high impact, smooth finish, durable, non-flammable, UV stabilized, UV resistant and high resistance to weathering |
| Dimension | 266.5mmX165mmX80mm |
