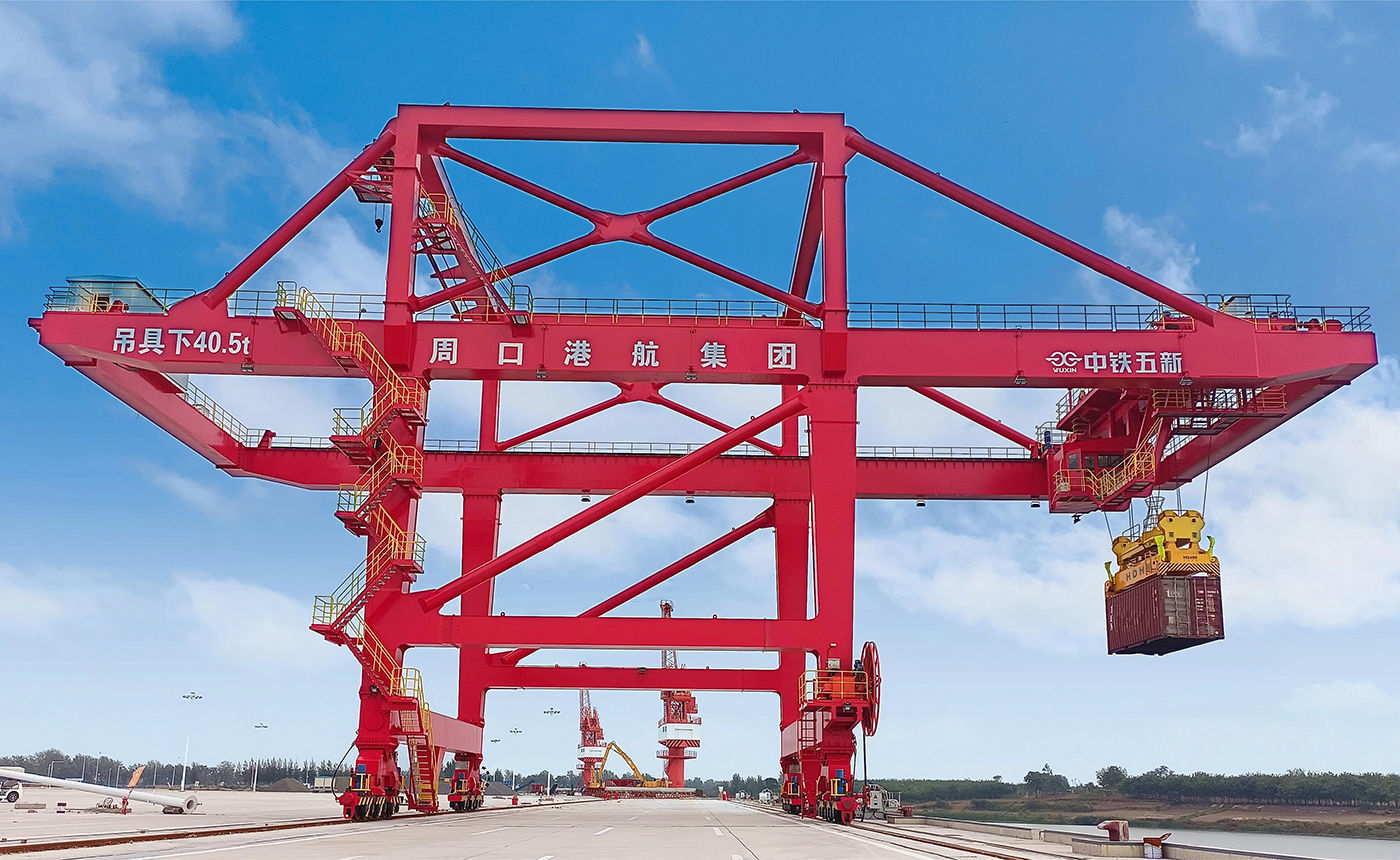

The Ship-to-Shore Container Crane (abbreviated as STS crane) is mainly used at the forefront of ports and wharves, and is specialized equipment for efficiently loading and unloading container ships. As the core equipment of modern container hub ports, Wuxin STS cranes achieve precise movement along the wharf shoreline through a steel wheel rail traveling mechanism, and are equipped with a multi-voltage compatible power supply system (380V~10kV), which can flexibly adapt to the power grid infrastructure of different port areas. Through an efficient loading and unloading operation design, the theoretical handling efficiency of a single machine can reach 60 natural containers per hour. Wuxin STS cranes comply with the latest domestic and international standards such as GB, FEM, DIN, IEC, and AWS, and feature safety and stability, customizability, low operation and maintenance costs, and energy conservation and environmental protection.
Product Advantages
1. Spreader tilting system
The spreader can tilt forward and backward at small angles and rotate horizontally, facilitating container alignment.
2. Stable structural design
Reduces swaying, facilitating operation and container alignment.
3. Selectable trolley drive mode
The trolley can be either rope-driven or self-propelled.
4. Intelligent lubrication design
Each lubrication point is supplied with grease at scheduled intervals and in precise amounts, reducing manual maintenance costs.
5. Strong wind warning system
Real-time wind speed monitoring, with the control unit outputting alarm signals, voice prompt signals, and signals to control crane movements.
6. Modular design
Facilitates in-plant pre-assembly, reducing on-site installation and commissioning time.
7. Advanced processes and equipment
The main girder is manufactured as a whole to ensure a smooth camber curve, effectively reducing trolley rail gnawing.
8. Multiple safety guarantees
Inherent safety of the crane has always been our goal. Through redundant design of multiple safety protections and real-time online cloud monitoring system, the safe use of the crane is effectively guaranteed.
9. Advanced tooling assurance
Integrated turning tooling for large main girder components enables flexible turning of large beam bodies such as the main girder, ensuring flat-position welding of main welds.
10. Secondary sandblasting process
Ensures that the surface cleanliness and roughness of structural components before coating meet coating quality requirements, guaranteeing coating quality.
11. Container truck anti-lifting
By detecting the positional relationship between the container truck and the container, it determines whether the container is hooked with the chassis, preventing safety accidents caused by the container truck being lifted.
12. Anti-crush truck cab system
During the spreader loading process, it detects whether the container truck moves, avoiding truck cab crushing accidents.
13. Operation area electronic fence
Identifies personnel and other abnormal objects within the area and implements mechanism restriction strategies, enhancing equipment operation safety.
14. Anti-bowling system
Real-time identification of container conditions in the yard area, combined with the automatic control system, prevents collision with yard containers during operations, improving operation safety.
15. Automatic deviation correction
Real-time detection of position deviation on both sides of the gantry crane's gantry travel, automatically adjusting motor speed to achieve automatic deviation correction, avoiding rail gnawing, and extending crane service life.
16. High power factor, low harmonics
Adopts intelligent compensation and harmonic elimination system to improve power factor, reduce line losses, and optimize power quality.
17. One-key anchoring
Adopts precise positioning technology and electric anchoring device to achieve one-key automatic anchoring.
Application Scenarios
The Ship-to-Shore Container Crane is mainly used at the forefront of ports and wharves, and is specialized equipment for efficiently loading and unloading container ships. It travels on steel rails using steel wheels and can be powered by 380V~10KV.
Optional Configurations
1. Energy recovery system (optional): Recovers energy from load lowering, reducing energy waste.
2. Remote control system (optional): Enables remote crane control, allowing one operator to manage multiple machines.
3. Intelligent lubrication (optional): Enables scheduled and quantitative automatic lubrication at different lubrication points.
4. Intelligent online monitoring system (optional): Real-time online monitoring of the operating status of key crane components (including vibration, temperature rise, etc.) with transmission to a remote control center.
