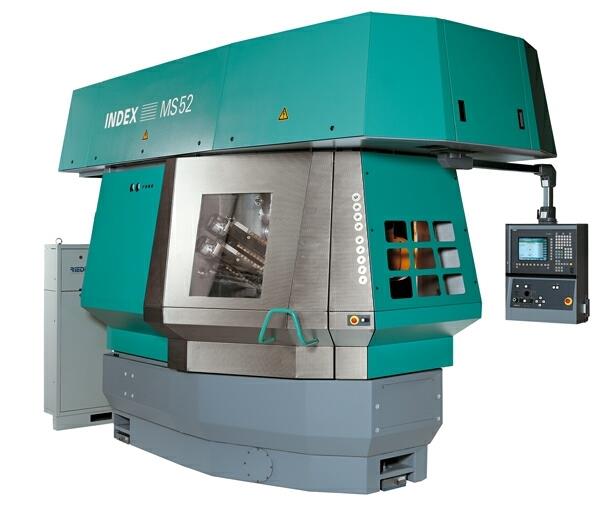

Multi Spindle Turning Machines MS52C

Front open multi spindle automatic1 / 1Six separately driven motor spindles with C-axis capabilities Speed control for optimal cutting speeds, favorable chip breaking, and short cycle times Twelve independently working CN......Front open multi spindle automatic1 / 1Six separately driven motor spindles with C-axis capabilities Speed control for optimal cutting speeds, favorable chip breaking, and short cycle times Twelve independently working CNC-controlled tool slides, optionally with one or two axis Particularly suitable for part families due to flexible setup and fast changeover Complete machining with driven tools in all spindle positions High dampening effect of hydrostatically guided Z-axis Automatic loading and unloading of chuck parts The construction1 / 2The MS52C is the compact version of the MS32 series. The 12 tool carriers can be equipped with two tools each. Independent of the position, any one of these tool carriers can be equipped with I.D. or O.D. tools. Contrary to conventionally designed machines, which consist of 6 cross slides and 6 end working tools, the tools can always be chosen optimally based on the need of the particular job. View into the work area1 / 3 Front open work area of the MS52C The exceptionally spacious work area without end slide blocks is freely accessible due to the front open design. This results in a measurable reduction of setup time and cost. The MS52C is especially suited for automatic machining of chuck parts. The parts are loaded and unloaded automatically by a robot mounted in the work area.
