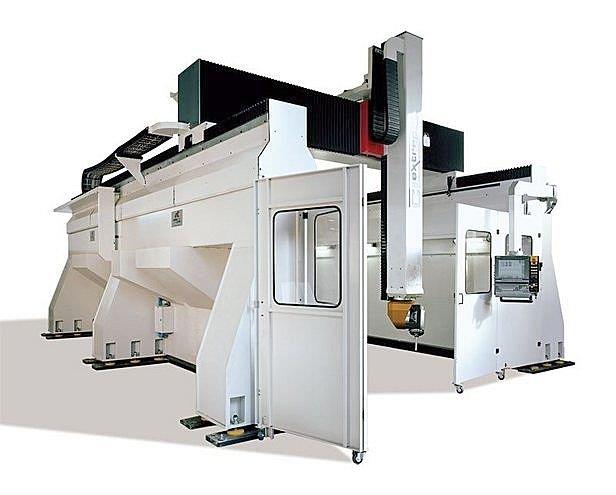

5-axis vertical milling machine for mold machining

5 axis mobile gantry vertical milling machine - cl extrema application: milling and modelling of composites and aluminium cartesian structure with movable portal linear axis: - strokes: x = from 2200 to 4000 mm y = from 2......5 axis mobile gantry vertical milling machine - cl extrema application: milling and modelling of composites and aluminium cartesian structure with movable portal linear axis: - strokes: x = from 2200 to 4000 mm y = from 2000 to 30000 mm z = 800 1300 - 2000 mm - maximum speeds: from 70 to 90 m/min (x-y), 50-60 m/min (z) - maximum acceleration: from 4 to 5 m/sec - positioning accuracy: +/- 0,03 mm/m - repeatability: 0,02 mm rotating axis: - rotation: 540 (c), +/-120 (a) - maximum speed: 6000 /sec (c) e (a) - positioning accuracy: 60 arcsec - repeatability: 20 arcsec - hydraulic brakes electro spindle: power 19-30 kw, max. speed 22.000 rpm tool magazine with 8-16-24 stations: hsk63 tool holders cast iron with t-slots table cnc control selca 4045pdh or siemens 840d power line or heidenhain itnc530 peripheral protections or full enclosure
