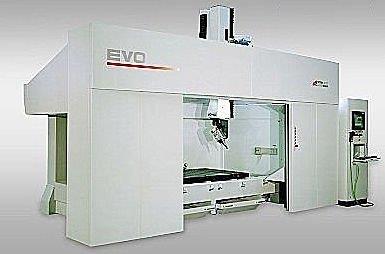

5-axis mobile gantry vertical milling machine

5 axis mobile gantry vertical milling machine - evo application: plastics, composites and pattern making cartesian structure with movable portal linear axis: - strokes: x = from 2400 to 6000 mm y = from 1200 to 2600 mm z ......5 axis mobile gantry vertical milling machine - evo application: plastics, composites and pattern making cartesian structure with movable portal linear axis: - strokes: x = from 2400 to 6000 mm y = from 1200 to 2600 mm z = 800 - 1300 mm - maximum speeds: 80 m/min (x-y), 60 m/min (z) - maximum acceleration: up to 6 m/sec - position accuracy: +/- 0,03 mm/m - repeatability: 0,02 mm rotating axis: - rotation: 440 (c), +180/-120 or +/-120 (a) - maximum speed: 125 /sec or 300 /sec (c) e (a) - positioning accuracy: 60 arcsec - repeatability: 20 arcsec electrospindle: power 8 or 12 kw, max. speed 22.000 or 30.000 rpm tool magazine with 12 stations: hsk50-f or hsk63-f working table: fixed, rotating (tr) or twin shuttle (ts) cnc type osai 10/510i or selca 4045p or siemens 840d power line peripheral protections or full enclosure
