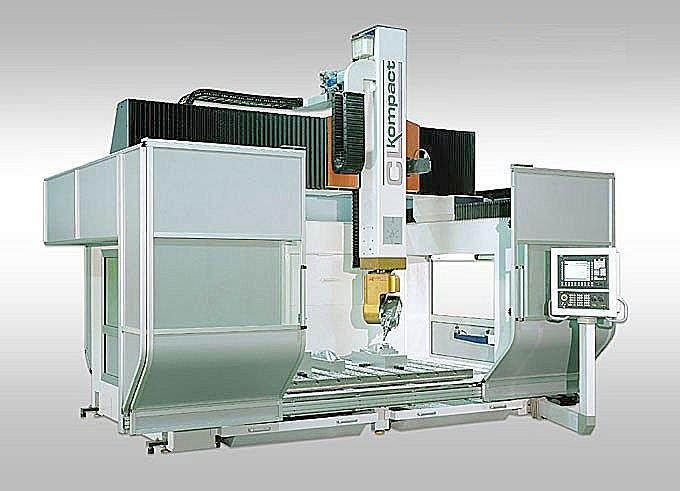

5 axis mobile gantry milling machine - cl kompact application: milling and modelling of composites and aluminium cartesian structure with movable portal linear axis: - strokes: x=2200 mm y=1500 - 2000 mm z=1100 - 1300 mm ......5 axis mobile gantry milling machine - cl kompact application: milling and modelling of composites and aluminium cartesian structure with movable portal linear axis: - strokes: x=2200 mm y=1500 - 2000 mm z=1100 - 1300 mm - maximum speeds: 90 m/min (x-y), 60 m/min (z) - maximum acceleration: up to 5 m/sec - positioning accuracy: +/- 0,03 mm/m - repeatability: 0,02 mm rotating axis: - rotation: +/-270 (c), +/-120 (a) - maximum speed: 6000 /sec (c) and (a) - positioning accuracy: 60 arcsec - repeatability: 20 arcsec - hydraulic brakes electrospindle: power 19-30 kw, max. speed 22.000 rpm tool magazine with 8-16-24 stations: hsk63 tool-holders cast iron with t-slots table cnc control siemens 840d power line or selca 4045pdh or heidenhain itnc530 peripheral protections or full enclosure
