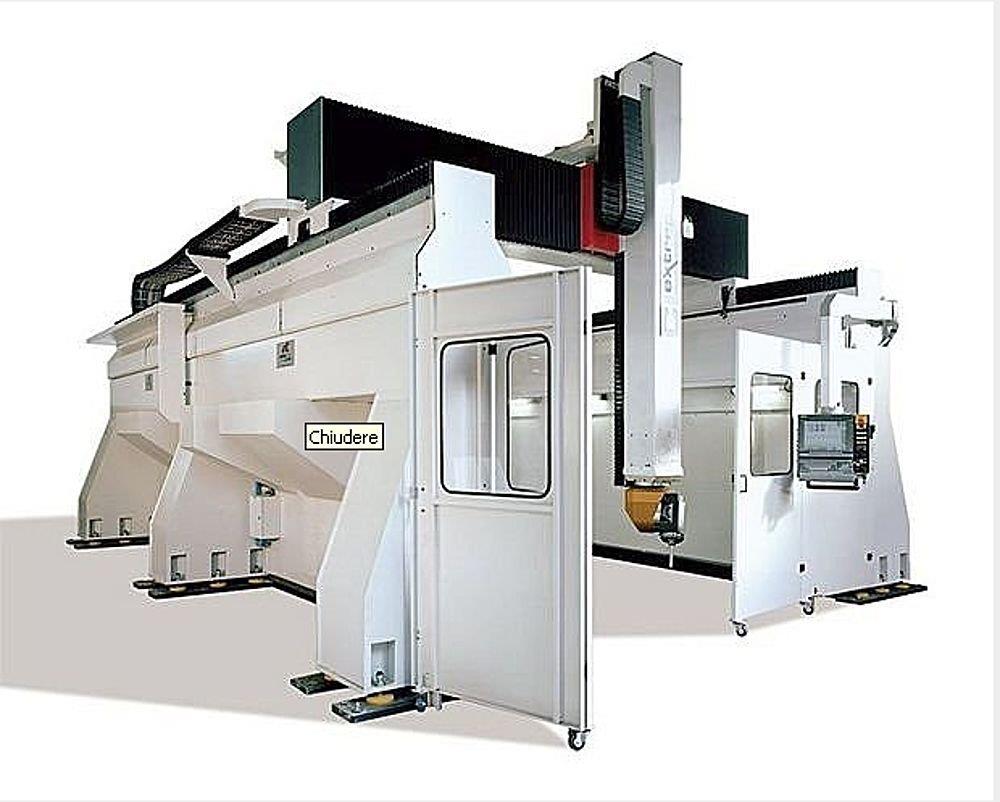

Application: milling and modelling of composites and aluminium Cartesian structure with movable portal Linear axis: - Strokes: X = from 2200 to 4000 mm Y = from 2000 to 30000 mm Z = 800 1300 - 2000 mm - Maximum speeds: fr......Application: milling and modelling of composites and aluminium Cartesian structure with movable portal Linear axis: - Strokes: X = from 2200 to 4000 mm Y = from 2000 to 30000 mm Z = 800 1300 - 2000 mm - Maximum speeds: from 70 to 90 m/min (X-Y), 50-60 m/min (Z) - Maximum acceleration: from 4 to 5 m/sec - Positioning accuracy: +/- 0,03 mm/m - Repeatability: 0,02 mm Rotating axis: - Rotation: 540 (C), +/-120 (A) - Maximum speed: 6000 /sec (C) e (A) - Positioning accuracy: 60 arcsec - Repeatability: 20 arcsec - Hydraulic brakes Electro spindle: power 19-30 kW, max. speed 22.000 rpm Tool magazine with 8-16-24 stations: HSK63 tool holders Cast iron with T-slots table CNC control SELCA 4045PDH or SIEMENS 840D Power Line or HEIDENHAIN iTNC530 Peripheral protections or full enclosure More information...
