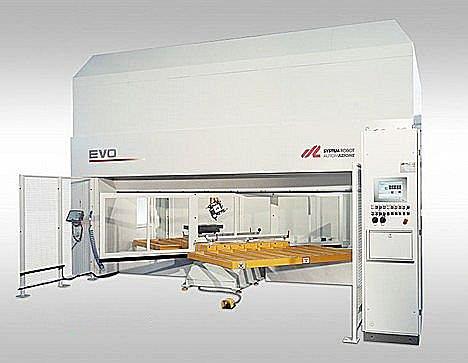

5 axis vertical milling machine - evo plast tr application: plastic material and similar cartesian structure with movable portal linear axis: - strokes: x=4000 mm y=2000 mm z=800 mm - maximum speeds: 80 m/min (x-y), 60 m/......5 axis vertical milling machine - evo plast tr application: plastic material and similar cartesian structure with movable portal linear axis: - strokes: x=4000 mm y=2000 mm z=800 mm - maximum speeds: 80 m/min (x-y), 60 m/min (z) - maximum acceleration: up to 6 m/sec - positioning accuracy: +/- 0,05 mm/m - repeatability: 0,03 mm rotating axis: - rotation: 440 (c), 295 (a) - maximum speed: 300 /sec (c), 200 /sec (a) - positioning accuracy: 60 arcsec - repeatability: 20 arcsec 2-3-4 electro spindles: power 1,5-2 kw (in continuous service s1) max. speed 24.000 rpm rotating table: 2 tables 2500 x 1500 mm vacuum pumps. 2 x 100 m/h cnc control osai 10/510 i portable auto teach-in programmable system full enclosure
