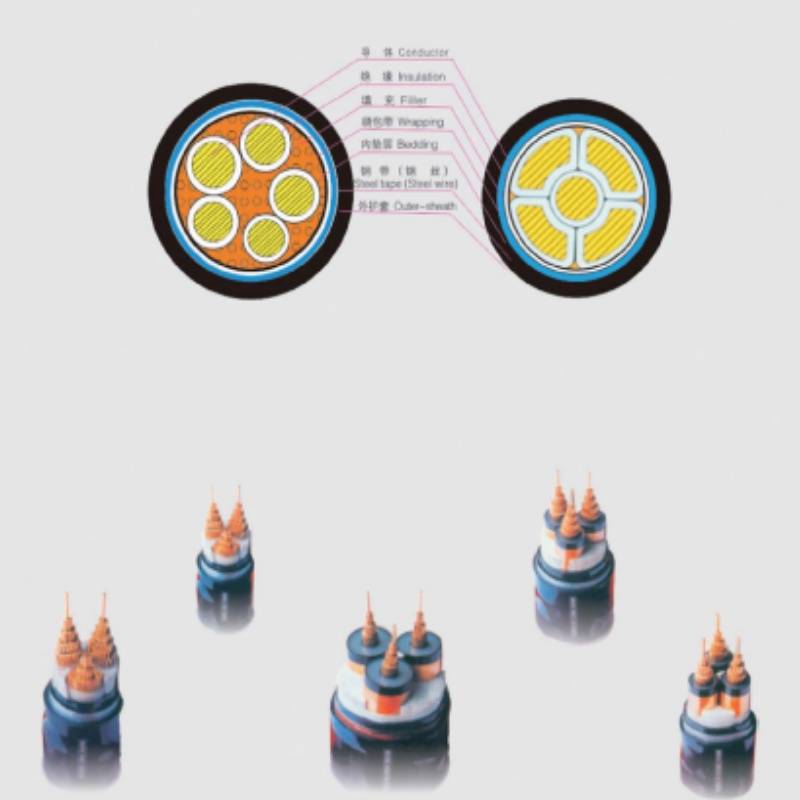

0.6/1(1.2)kV pvc insulated power cable
Usage characteristics:
①The maximum long-term allowable working temperature of the cable conductor is 70°C;
②During a short circuit (lasting no more than 5s), the maximum temperature of the cable conductor shall not exceed 140°C;
③The ambient temperature during cable installation should not be lower than 0°C, and the minimum bending radius of the cable during installation is shown in the table below.
|
Product model and name |
|
|
Model |
Name |
|
V(L)V |
PVC insulated PVC sheathed power cable |
|
V(L)Y |
PVC insulated PE sheathed power cable |
|
V(L)V22 |
PVC insulated steel tape armored PVC sheathed power cable |
|
V(L)V23 |
PVC insulated steel tape armored PE sheathed power cable |
|
V(L)V32 |
PVC insulated fine steel wire armored PVC sheathed power cable |
|
V(L)V33 |
PVC insulated fine steel wire armored PE sheathed power cable |
|
V(L)V62 |
PVC insulated non-magnetic metal tape armored PVC sheathed power cable |
|
V(L)V72 |
PVC insulated non-magnetic wire armored PVC sheathed power cable |
Note: For the PVC sheath power cables of the above models, the company can also produce into flame retardant, fire-resistant, anti-termite power cable. Add “ZA-”, “ZB-” or “ZC-” before the above models for flame-retardant power cables; add “N-” before the above models for fire-resistant power cables; add “-FY” after the above models for termite-proof power cables”.
|
Project |
Single core cable |
Multi-core cable |
||
|
No Armored |
Armored |
No Armored |
Armored |
|
|
Minimum bending radius of cable at installation |
20 D |
15D |
15D |
12 D |
|
Cables near junction boxes and terminals Minimum bending radius (but bending should be carefully controlled, e.g. with a forming guide plate) |
15D |
12 D |
12 D |
10 D |
|
Note: D is the outer diameter of the cable. |
||||
