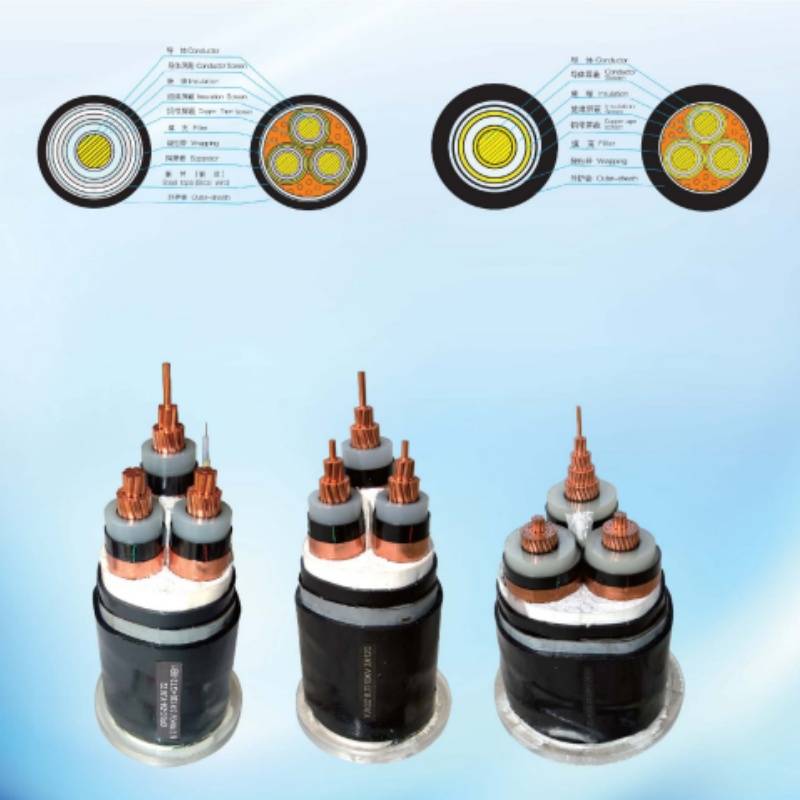

6~35kV cross-linked polyethylene insulated power cable

Negotiable

Chongqing Taishan Cable Co.,Ltd.

Located Region:

China

Address:

No. 17, Shiyan Avenue, Yufengshan Town, Yubei District, Chongqing City

Biz Consulting:

+86 02361898070

E-mail:

tanxc2017@163.com

Online Contact

Favorite

Usage characteristics:

①The maximum rated temperature of the cable conductor is 90°C;

②During a short circuit (lasting no more than 5s), the maximum temperature of the cable conductor shall not exceed 250°C;

③U₀ is divided into two categories according to the system grounding fault duration, as shown in the table below.

④When the cable is installed at an ambient temperature no lower than 0°C, preheating is not required, and there is no limit on the drop height for installation. The minimum bending radius during installation is shown in the table below.

Product model, name and purpose
Model		Name	Main use
Copper Core	Aluminum Core	Name	Main use
YJV YJY	YJLV YJLY	XLPE insulated PVC or PE sheathed power cable	Suitable for indoor, tunnel, cable trench and pipeline, can also be buried in loose soil, can not withstand external mechanical forces, but can withstand a certain laying traction
ZC-YJVZC-YJY	ZC-YJLVZC-YJLY	Cross-linked polyethylene insulated PVC sheathed or polyethylene sheathed flame retardant class C power cable
YJV22YJV23	YJLV22YJLV23	XLPE insulated steel tape armored PVC or PE sheathed power cable	Laying in indoor, tunnel, cable trench and underground direct buried laying, the cable can withstand mechanical external force, but can not withstand large tension
ZC-YJV22ZC-YJV23	ZC-YJLV22ZC-YJLV23	XLPE insulated steel tape armored PVC or PE sheathed flame retardant Class C power cable
YJV32YJV33	YJLV32YJLV33	XLPE insulated fine steel wire armored PVC or PE sheathed power cable	Laying in shafts, water and soil with drop conditions, the cable can withstand mechanical external forces and considerable pulling force.
ZC-YJV32ZC-YJV33	ZC-YJLV32ZC-YJLV33	XLPE insulated fine steel wire armored PVC sheathed or PE sheathed flame retardant Class C power cable
YJV42YJV43	YJLV42YJLV43	XLPE insulated thick steel wire armored PVC or PE sheathed power cable	It is suitable for large drop or heavy laying environment in vertical shaft and water, and can bear greater pulling force.
ZC-YJV62ZC-YJV63	ZC-YJLV62ZC-YJLV63	XLPE insulated aluminum tape armored PVC sheathed or PE sheathed flame retardant Class C power cable	Laying in indoor, tunnel, cable trench and underground direct buried laying, the cable can withstand mechanical external force, but can not withstand large tension.
Note: Our company can also produce low-smoke halogen-free sheath cross-linked power cables, termite-proof power cables. ZC is flame retardant Class C cable, flame retardant is divided into A, B, C, D four categories, namely ZA, ZB, ZC, ZD.

Rated power frequency voltage between conductors U	Maximum equipment voltage U_m	Rated power frequency voltage U₀ between cable conductor and shield or metal sheath.
Rated power frequency voltage between conductors U	Maximum equipment voltage U_m	Category I cable	Category II cable
6	7.2	3.6	6.0
10	12	6.0	8.7
15	17.5	8.7	12.0
20	24	12.0	18.0
35	42	21.0	26.0

Category 1 cables-used for systems with single-phase grounding fault time not more than 1 minute each time, and can also be used for systems with a maximum of 8 hours and an annual cumulative time not more than 125 hours.

Category 2 Cables-For systems with longer ground fault times that require higher cable insulation performance, Category 2 should also be used.

Project	Single core cable		Three-core cable
Project	No Armored	Armored	No Armored	Armored
Minimum bending radius of cable during installation	20D	15D	15D	12D
Minimum bending radius of the cable near the connection box and the terminal (bending should be carefully controlled, such as using a molded guide plate)	15D	12D	12D	10D
Note: D-actual outer diameter of the cable, mm
