The CS series high-efficiency spring cone crusher is manufactured using classic domestic spring cone crusher technology. After years of use and optimization, it offers stable performance and is one of the earliest and most widely used cone crushers both domestically and internationally.
1/1

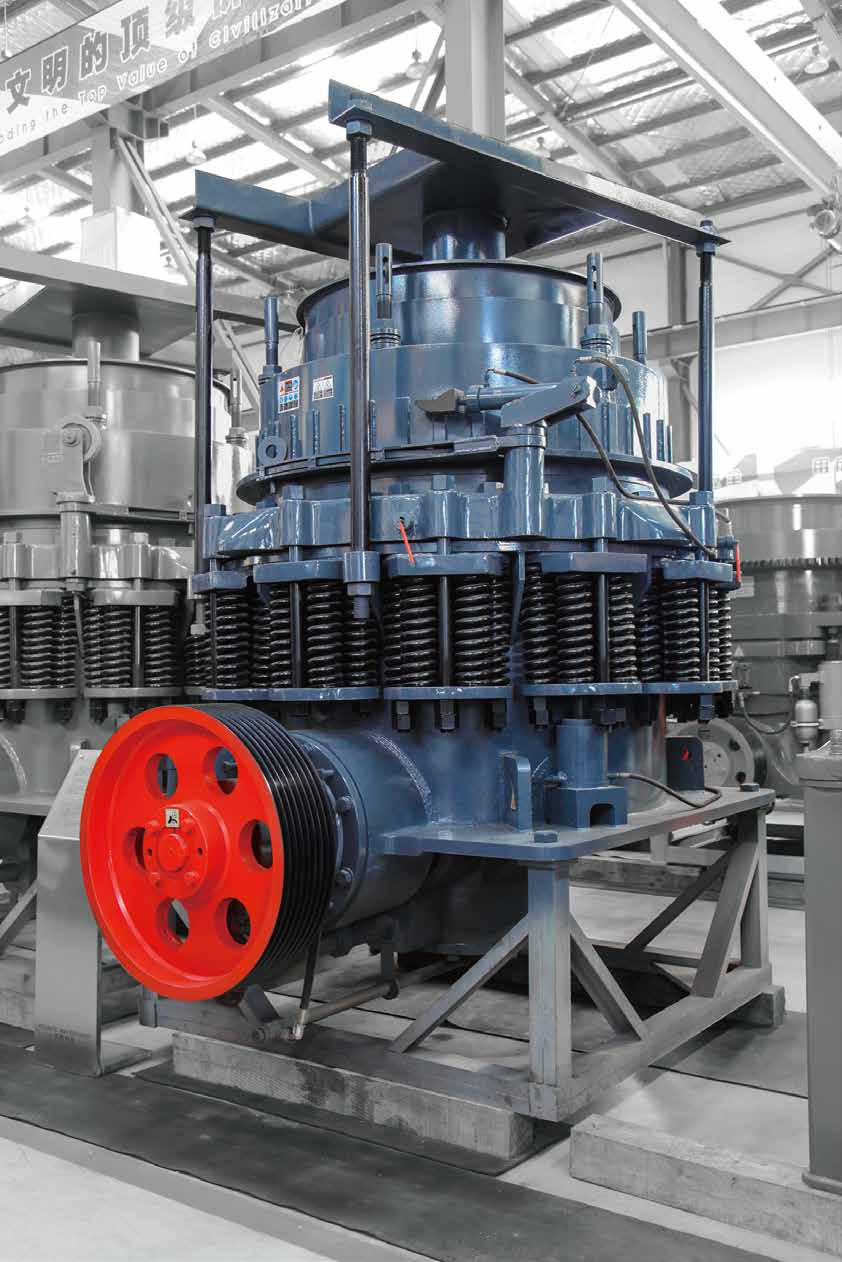

CS Series High-efficiency Spring Cone Crusher
Negotiable
China
No. 1688 Gaoke East Road, Pudong New Area, Shanghai City
021-5838-2010
mill@sbm-mill.com
Product Introduction
Product Parameters
Table of Specifications and Performance Parameters
|
Model |
Diameter of moving cone |
Cavity type |
Dimensions of feed port |
Adjustment range of discharge port |
Processing capacity |
Drive shaft speed |
Power |
Overall dimension |
|
|
Closed edge |
Opening edge |
||||||||
|
CS75B |
(mm/feet) |
(/) |
(mm) |
(mm) |
(mm) |
(t/h) |
(r/min) |
(kw) |
(mm) |
|
900(3 ') |
Coarse type |
159 |
175 |
13-38 |
59-163 |
580 |
75 |
2821 × 1880 × 2164 |
|
|
Fine type |
83 |
102 |
45922 |
45-91 |
|||||
|
CS75D |
(mm/feet) |
(/) |
(mm) |
(mm) |
(mm) |
(t/h) |
(r/min) |
(kw) |
(mm) |
|
914(3 ') |
Coarse type |
51 |
76 |
45827 |
65-140 |
580 |
75 |
2821 × 1880 × 2410 |
|
|
Medium |
33 |
60 |
45732 |
27-100 |
|||||
|
Fine type |
13 |
41 |
45729 |
27-90 |
|||||
|
CS160B |
(mm/feet) |
(/) |
(mm) |
(mm) |
(mm) |
(t/h) |
(r/min) |
(kw) |
(mm) |
|
1295(41/4 ') |
Coarse type |
216 |
241 |
19-51 |
172-349 |
485 |
160-185 |
2800 × 2342 × 2668 |
|
|
Medium |
188 |
210 |
16-31 |
132-253 |
|||||
|
Fine type |
109 |
137 |
13-31 |
109-181 |
|||||
|
CS160D |
(mm/feet) |
(/) |
(mm) |
(mm) |
(mm) |
(t/h) |
(r/min) |
(kw) |
(mm) |
|
1295(41/4 ') |
Coarse type |
70 |
105 |
10-25 |
109-227 |
485 |
160 |
2800 × 2342 × 2668 |
|
|
Medium |
54 |
89 |
6-16 |
82-163 |
|||||
|
Fine type |
29 |
64 |
3-16 |
36-163 |
|||||
|
CS240B |
(mm/feet) |
() |
(mm) |
(mm) |
(mm) |
(t/h) |
(r/min) |
(kw) |
(mm) |
|
1650(51/2 ') |
Coarse type |
241 |
268 |
25-64 |
299-635 |
485 |
220-225 |
3911 × 2870 × 3771 |
|
|
Medium |
213 |
241 |
22-51 |
258-417 |
|||||
|
Fine type |
188 |
209 |
16-38 |
181-327 |
|||||
|
CS240D |
(mm/feet) |
(/) |
(mm) |
(mm) |
(mm) |
(t/h) |
(r/min) |
(kw) |
(mm) |
|
1650(51/2 ') |
Coarse type |
98 |
133 |
10-25 |
190-336 |
485 |
220-225 |
3917 × 2870 × 3771 |
|
|
Medium |
54 |
89 |
45827 |
136-281 |
|||||
|
Fine type |
35 |
70 |
45790 |
90-209 |
|||||
|
CS400B |
(mm/feet) |
(/) |
(mm) |
(mm) |
(mm) |
(t/h) |
(r/min) |
(kw) |
(mm) |
|
2134(7 ') |
Coarse type |
334 |
369 |
31-64 |
870-1400 |
435 |
400 |
5200 × 4300 × 4700 |
|
|
Medium |
303 |
334 |
25-51 |
608-998 |
|||||
|
Fine type |
253 |
278 |
19-38 |
381-726 |
|||||
|
CS400D |
(mm/feet) |
(/) |
(mm) |
(mm) |
(mm) |
(t/h) |
(r/min) |
(kw) |
(mm) |
|
2134(7 ') |
Coarse type |
127 |
178 |
13-25 |
454-599 |
435 |
400 |
5200 × 4300 × 4700 |
|
|
Medium |
95 |
133 |
10-19 |
354-508 |
|||||
|
Fine type |
51 |
105 |
5-16 |
190-408 |
|||||
