The PF series impact crusher adopts traditional domestic impact crushing technology. After years of design optimization, it offers superior performance and enhanced reliability, making it a widely used equipment for medium and fine crushing of medium-hard and soft materials both domestically and internationally.
1/1

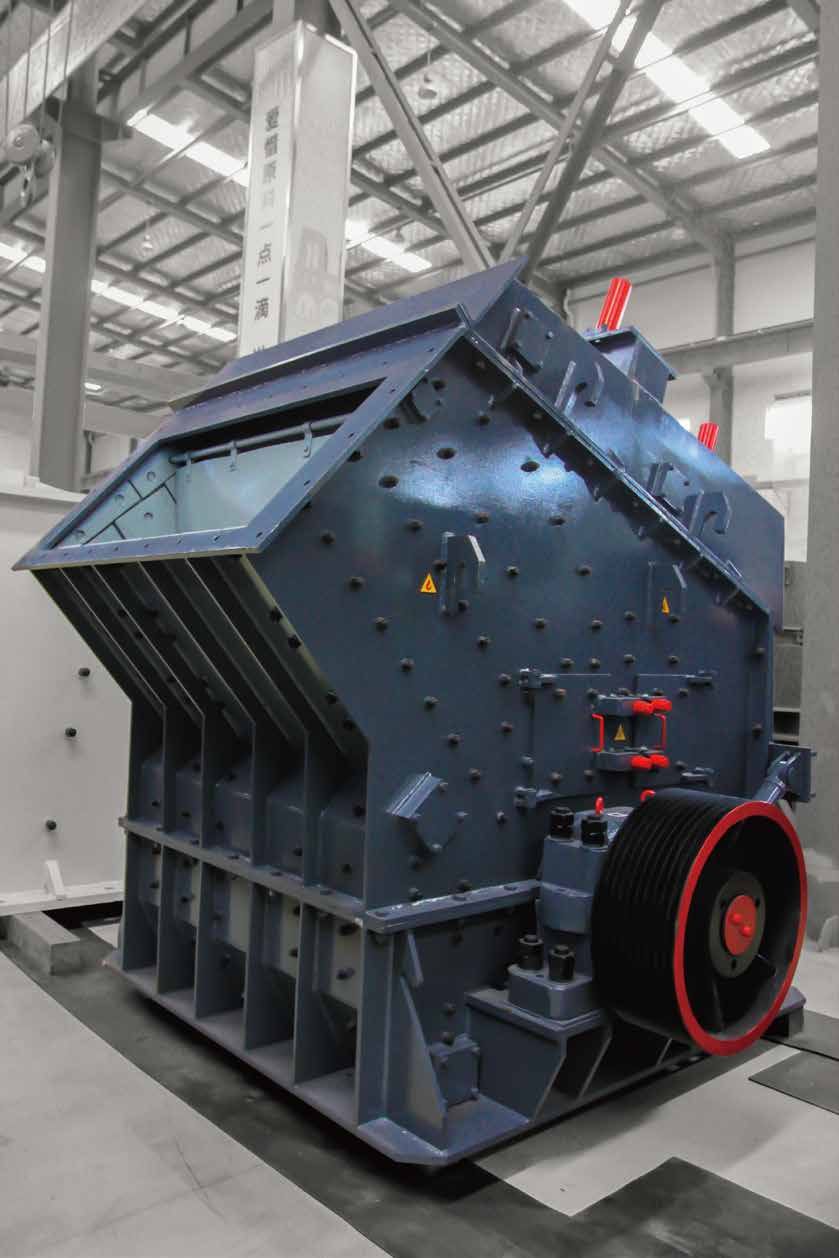

PF Series Impact Crusher
Negotiable
China
No. 1688 Gaoke East Road, Pudong New Area, Shanghai City
021-5838-2010
mill@sbm-mill.com
Product Introduction
Product Parameters
Table of Specifications and Performance Parameters
|
Model |
Rotor specifications |
Feed inlet size |
Maximum feed particle size |
Processing capacity |
Power |
Overall dimension |
|
PF Series |
(mm) |
(mm) |
(mm) |
(t/h) |
(kw) |
(mm) |
|
PF1010 |
φ1000 × 1050 |
400 × 1080 |
350 |
50-80 |
75 |
2455 × 2086 × 2800 |
|
PF1210 |
φ1250 × 1050 |
400 × 1080 |
350 |
60-120 |
110 |
2590 × 2050 × 2810 |
|
PF1214 |
φ1250 × 1400 |
400 × 1430 |
350 |
80-160 |
132 |
2590 × 2400 × 2810 |
|
PF1315 |
φ1300 × 1500 |
860 × 1520 |
350 |
120-260 |
200 |
2930 × 2760 × 3050 |
