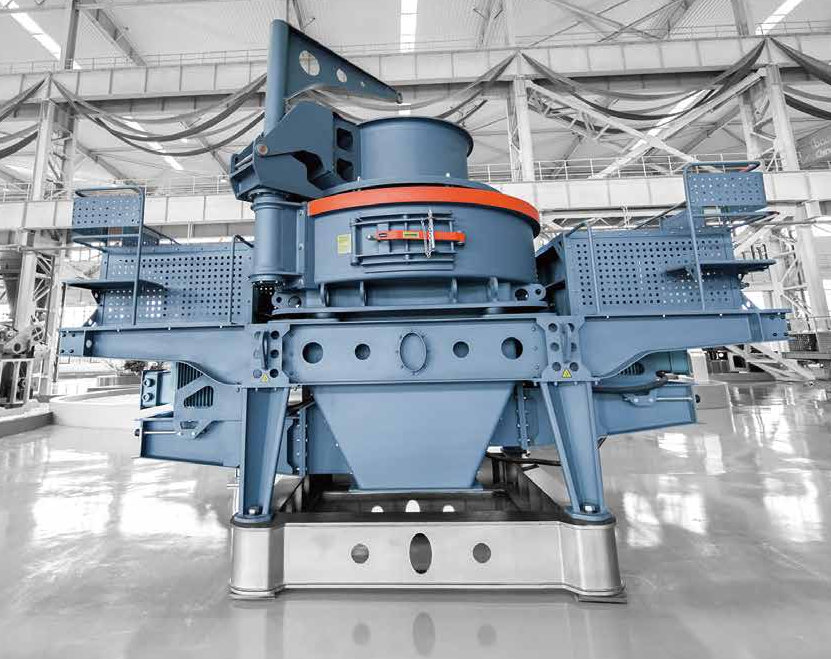

VSI6X Series Vertical Shaft Impact Crusher

Negotiable
China
No. 1688 Gaoke East Road, Pudong New Area, Shanghai City
021-5838-2010
Online Contact
Favorite
Product Introduction

Product Introduction:

The VSI6X series vertical shaft impact crusher incorporates new technological advancements, including a four-port impeller structure, independently designed bearing barrel, high-efficiency low-cost crushing chamber, and a high-throughput frame. Through optimized overall design, the equipment achieves reliable levels in crushing efficiency, operating costs, and maintenance performance.

Product Advantages:

"Stone-on-Stone" crushing chamber for high-quality output

"Stone-on-Iron" crushing chamber for high crushing efficiency

New structural design of key components for lower operating and maintenance costs

Safer and more reliable equipment operation

Product Parameters

Table of Specifications and Performance Parameters

Model

Maximum feed particle size

throughput

Spindle speed

Power

Overall dimension

Sand making

Plastic surgery

Sand making

Plastic surgery

VSI6X Series

(mm)

(mm)

(t/h)

(t/h)

(r/min)

(kw)

(mm)

VSI6X8015

≤ 30

≤ 40

109-117

131-204

1300-1700

75 x 2

4100 × 2275 × 3353

VSI6X9026

≤ 35

≤ 45

167-179

200-313

1200-1500

132 × 2

4640 × 2380 × 3500

VSI6X1040

≤ 40

≤ 50

264-283

317-495

1100-1400

200 × 2

4880 × 2560 × 3725

VSI6X1150

≤ 45

≤ 55

344-368

413-644

1000-1300

250 × 2

5500 × 2750 × 3950

VSI6X1263

≤ 50

≤ 60

454-486

545-849

900-1200

315 × 2

5700 × 2980 × 4190

VSI6X1380

≤ 50

≤ 60

601-643

721-1125

800-1100

400 × 2

7900 × 3260 × 4183

VSI6X13100

≤ 50

≤ 60

751-804

940-1407

800-1100

500 × 2

7900 × 3260 × 4183
