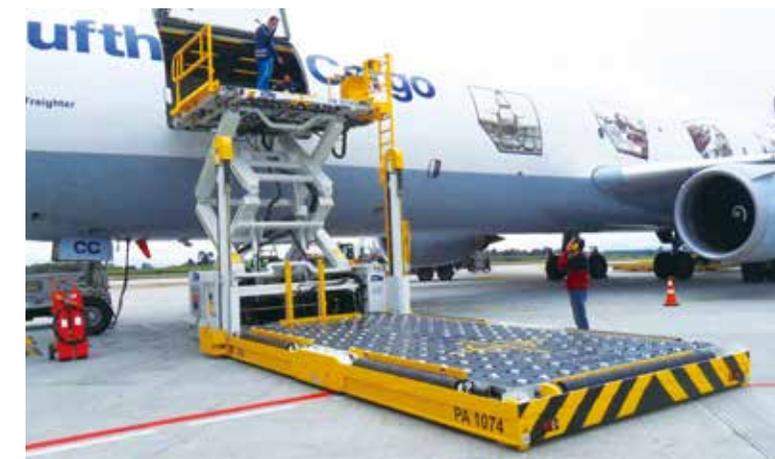

WGSJT14 series ULD loader is self-propelled, with hydraulic steering, front axle drive, hydraulic braking and hydrostatic system, and the loading capacity is 15000kg. It is used for loading/unloading cargoes to/from cargo compartments of all types of cargo aircrafts and lower lobe of wide-body passenger aircrafts, and capable of loading two pallets (3,175mm × 2,438mm), altogether with four ULDs (LD-3) or one 20-foot pallet.
Safety
- High coolant temperature protection;
- Low engine oil pressure protection;
- Functional Interlock system between driving and cargo cargo handling;
- Buzzer alarms while lifting and lowering platforms;
- The indicator on the control panel illuminates when stabilizers are not fully retracted;
- Platform cannot be lifted until stabilizers are fully extended;
- Emergency electric pump and hand pump for emergency evacuation.
Features
- Helix rollers, allowing loading cargoes from side and rear;
- Movable console;
- Eight stabilizers;
- Modular design;
- Swing-out engine compartment;
- Main platform and bridge platform aligning system;
- Guiding rail and folding tray.
