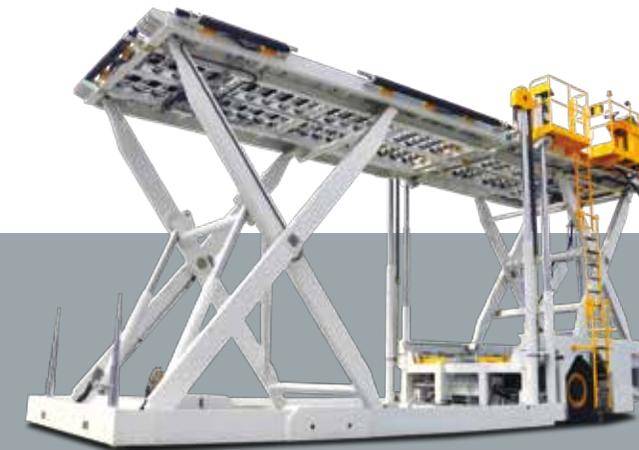

The GJT35 container loader is a self-propelled vehicle with fully hydraulic steering, fully hydraulic drive front axle, fully hydraulic brake and hydrostatic system. The maximum load capacity of the loader is 35 tons and the maximum lifting height is 5.6 meters. It is used for loading/unloading cargoes to/from the lower lobe and main deck of cargo aircrafts, and the lower lobe of wide-body passenger aircrafts.
Safety
- High coolant temperature protection;
- Low engine oil pressure protection;
- Functional Interlock system between driving and cargo handling;
- Indicators for retracting stabilizer;
- Emergency button for the solenoid valve;
- Emergency electric pump and hand pump for emergency evacuation.
Features
- Helix rollers, allowing loading cargoes from side and rear;
- Modular design;

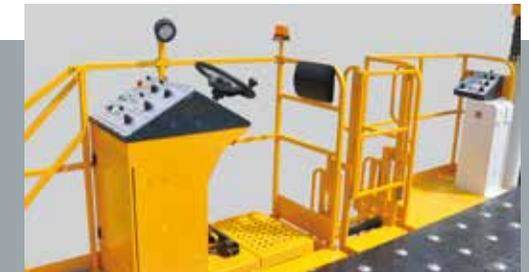

- Movable console;
- Six stabilizers;
- Main platform adjustment;
- Swing-out engine compartment;
- Main platform and bridge platform servo system;
- Guiding rail and folding tray;
- Two control panels.
