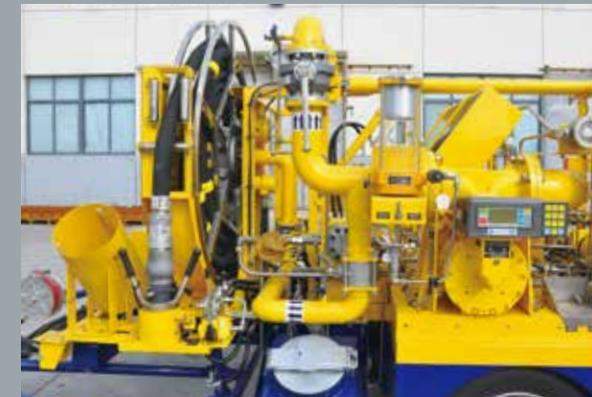

WGGXP Hydrant Dispenser is designed to refuel aircrafts from the underground hydrant fuel system with flow rate of 3800 LPM. The unit is equipped with an elevating scissor-lift platform with a reach of 4.5 meters to serve all civil aircrafts.
Performance
- 3800 LPM via two 3.0m × 63mm (2.5") platform deck hoses;
- 1200 LPM via 20m × 63mm (2.5") reel hose.
Safety
- Interlock system;
- Emergency interlock override;
- Electric deadman handle;
- Emergency stop / Fuel shutdown buttons;
- Platform wing detectors.
Features
- Comply with JIG latest standard;
- Modular concept;
- Efficient fuel flow path with low pressure drop across the dispenser;
- Intake and hose end pressure control;
- Filter Water separator;
- Hydraulic deck hose support boom;
- One-piece single wrap hose reel;
- Visual fuel check sampler;
- 150 liters recovery tank;
- Stainless steel pipe-work;
- Hydraulic stabilizers and input hose lifting boom.
