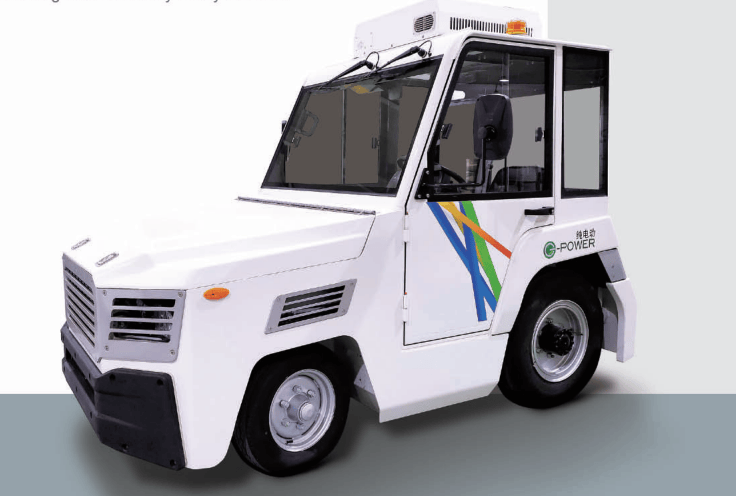

GT4D Electric Baggage Tractor

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

GT4D Electric Baggage Tractor can be used to tow pallets and small aircrafts. This model is designed to meet demanding operational needs. The fast traveling speed and small turning radius brings outstanding maneuverability to any worksite.

  •  LFP Battery
  •  Low Temperature Suitable
  •  Automatic Fire Suppression
  •  Telemetry

Features

  • Optional Autopilot;
  • PLC Control;
  • Front-wheel steering;
  • Direct driven by motor.

Safety

  • Automatic Fire Suppression;
  • Crash barrier against damage of battery box;
  • Low battery protection;
  • Power cuts off when driver's absent;
  • Interlock protection between charging and driving function;
  • Interlock between parking brake and driving, etc.
Product Parameters
MAIN CONFIGURATION   OPTIONAL
Battery CATL, LFP battery Autopilot
Motor PMBL motor Driving Recorder  Telemetry
Battery Capacity 347.76V / 173Ah / 60kWh Reversing Camera & Radar

Parameters

Dimensions 3,250mm × 1,620mm × 2,080mm
Max. Draw Bar Pull 26 kN
Gross Weight 4, 000 kg
Min. Turning Radius 3,100 mm
Max. Driving Speed 27 km/h
Travel Range 180 km
Charging Time min. 0.5 h
Tractive Tonnage 32, 500 kg
Temperature Range -30-50°C
