DESIGN AND MANUFACTURING STANDARDS
Design and manufacturing according to API602, BS 5352, ASME B16.34
End dimension according to ASME B12.01, ASME B16.11
Inspection and test according to API 598
1/1
FORGED STEEL THREAD, SOCKET WELDED GATE VALVE
Negotiable
China
No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City
13162305541
13706691500
gjb-cln36661@shhh-valve.com
Product Introduction
Product Parameters

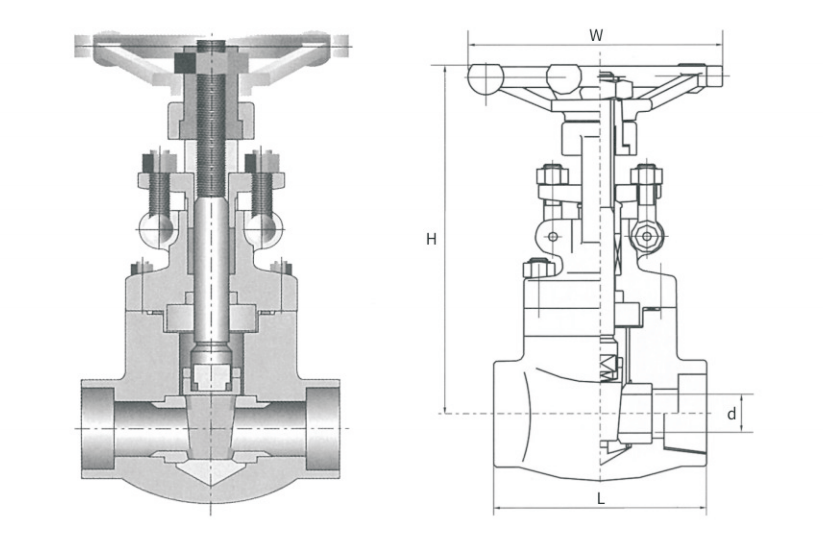

MAIN DIMENSION AND WEIGHT
|
CLASS 500~800 |
||||||||
|
Size |
L (mm) |
W (mm) |
H Open (mm) |
WT (Kg) |
||||
|
inch |
mm |
Reduce Bore |
Full Bore |
|||||
|
Reduce Bore |
Full Bore |
Reduce Bore |
Full Bore |
|||||
|
1/4 |
- |
8 |
- |
79 |
100 |
166 |
2.2 |
- |
|
3/8 |
1/4 |
10 |
- |
79 |
100 |
166 |
2.2 |
2.2 |
|
1/2 |
3/8 |
15 |
10 |
79 |
100 |
166 |
2.2 |
2.2 |
|
3/4 |
1/2 |
20 |
15 |
92 |
100 |
169 |
2.2 |
2.2 |
|
1 |
3/4 |
25 |
20 |
111 |
125 |
193 |
4.7 |
4.3 |
|
1-1/4 |
1 |
32 |
25 |
120 |
160 |
236 |
5.9 |
5.9 |
|
1-1/2 |
1-1/4 |
40 |
32 |
120 |
160 |
246 |
6.9 |
6.9 |
|
2 |
1-1/2 |
50 |
40 |
140 |
180 |
283 |
11.1 |
11.1 |
|
|
2 |
|
50 |
178 |
200 |
330 |
|
15.2 |
|
CLASS 900~1500 |
|||||||
|
Size |
Class Rate |
L (mm) |
W (mm) |
H Open (mm) |
WT (Kg) |
||
|
inch |
mm |
B.B |
W.B |
||||
|
1/4 |
8 |
900 1500 |
79 111 |
100 125 |
166 197 |
2.2 4.6 |
- 4.4 |
|
3/8 |
10 |
900 1500 |
79 111 |
100 125 |
166 197 |
2.2 4.3 |
- 4.4 |
|
1/2 |
15 |
900 1500 |
92 111 |
100 125 |
169 197 |
2.2 4.2 |
- 4.3 |
|
3/4 |
20 |
900 1500 |
111 111 |
125 125 |
193 197 |
4.3 4.0 |
- 4.2 |
|
1 |
25 |
900 1500 |
120 120 |
160 160 |
230 218 |
5.9 6.3 |
- 6.6 |
|
1-1/4 |
32 |
900 1500 |
120 120 |
160 160 |
246 237 |
6.9 8.7 |
- 8.8 |
|
1-1/2 |
40 |
900 1500 |
140 140 |
180 180 |
283 274 |
11.1 12.1 |
- 12.5 |
|
2 |
50 |
900 1500 |
178 178 |
200 200 |
330 320 |
15.2 17.2 |
- 17.2 |
B.B-Bolted Bonnet W.B-Welded Bonnet
