CHINESE STANDARD CAST STEEL GATE VALVE

Negotiable

Shanghai Huhang Valves Co., Ltd.

Located Region:

China

Address:

No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City

Biz Consulting:

13162305541

WhatsApp:

13706691500

E-mail:

gjb-cln36661@shhh-valve.com

Online Contact

Favorite

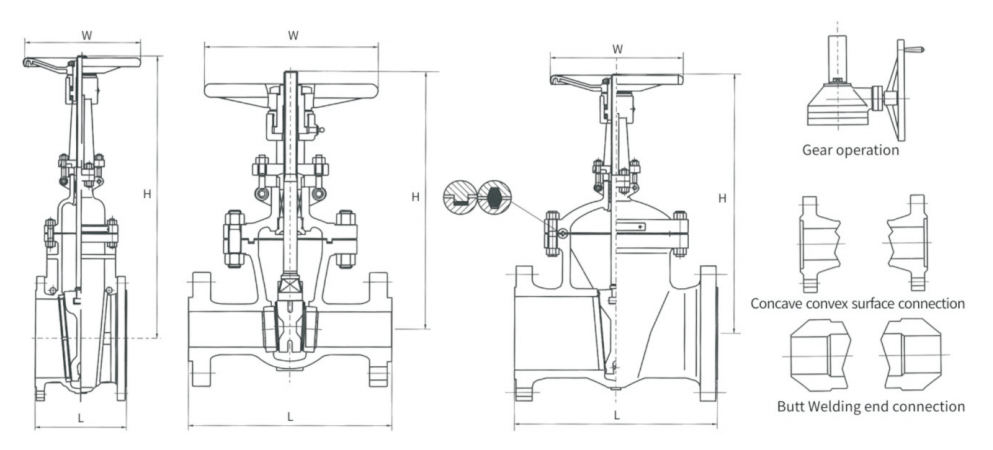

MAIN DIMENSION AND WEIGHT

PN16 PN25						PN40					PN64 PN100
Size	L	H	W	WT (PN16)	WT (PN25)	Size	L	H	W	WT	Size	L	H (PN64)	W (PN64)	H (PN100)	W (PN100)	WT (PN64)	WT (PN100)
mm	mm	mm	mm	Kg	Kg	mm	mm	mm	mm	Kg	mm	mm	mm	mm	mm	mm	Kg	Kg
50	250	358	240	24	25	50	250	370	280	25	50	250	470	280	490	360	37	50
65	270	373	240	26	28	65	280	394	280	38	65	280	496	320	540	400	53	62
80	280	435	280	40	40	80	310	455	300	48	80	310	558	320	572	400	67	80
100	300	500	300	50	50	100	350	550	320	67	100	350	653	350	680	400	90	100
125	325	614	320	66	75	125	400	636	400	101	125	400	738	400	744	560	140	160
150	350	674	360	90	105	150	450	706	400	135	150	450	820	400	830	560	192	220
200	400	818	400	140	170	200	550	859	460	213	200	550	980	460	1000	560	318	350
250	450	969	460	200	216	250	650	1016	560	375	250	650	1050	560	1080	600	470	520
300	500	1145	560	280	290	300	750	1200	640	500	300	750	1370	640	1208	640	670	730
350	550	1280	640	411	445	350	850	1340	640	700	350	850	1450	720	1490	720	875	955
400	600	1452	640	560	685	400	950	1495	720	1100	400	950	1620	800	-	-	1450	-
450	650	1541	720	870	940	450	1050	1581	800	1610	500	1150	2000	950	-	-	1850	-
500	700	1676	720	1000	1200	500	1150	1710	800	1880	600	1350	-	-	-	-	-	-
600	800	1874	800	1200	1350	600	1350	2035	950	3100
700	900	2083	800	1600	2000
800	1000	2400	920	2100	3000
900	1100	2950	920	3115	4100
1000	1200	3245	920	4200	5080
