PRESSURE SEAL GLOBE VALVE

Negotiable

Shanghai Huhang Valves Co., Ltd.

Located Region:

China

Address:

No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City

Biz Consulting:

13162305541

WhatsApp:

13706691500

E-mail:

gjb-cln36661@shhh-valve.com

Online Contact

Favorite

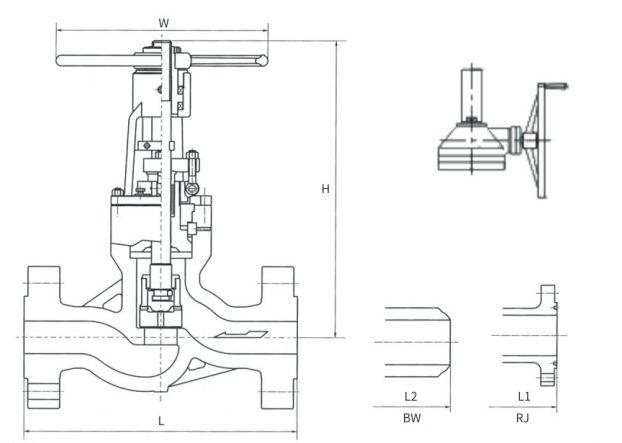

CLASS 600
Size		L			W	H	W1	H1	TRQ	WT (RF)
NPS inch	DN mm	RF (BW Long Pattern) mm	BW Short Pattern mm	RTJ mm	mm	mm	mm	mm	N.m	Kg
2	50	292	178	295	280	495	310	592	220	45
2-1/2	65	330	216	333	320	600	310	660	360	55
3	80	356	254	359	350	650	310	780	440	80
4	100	432	305	435	450	750	440	850	602	100
6	150	559	457	562	450	800	440	910	1200	330
8	200	660	584	664	560	980	600	1094	1820	510
10	250	787	711	791	600	1100	600	1130	3875	1000
12	300	838	813	841			600	1450	5395	1280
14	350	889		892			700	1620	9170	1750
16※	400	991		994			700	1480	13245	1900
18※	450	1092		1095			520	1850		2080
20※	500	1194		1200			600	1885		2750
24※	600	1397		1407			600	1930		3800

CLASS 900
Size		L			W	H	W1	H1	TRQ	WT (RF)
NPS inch	DN mm	RF (BW Long Pattern) mm	BW Short Pattern mm	RTJ mm	mm	mm	mm	mm	N.m	Kg
2	50	368	216	371	350	590	310	650	285	90
2-1/2	65	419	254	422	400	660	310	765	360	110
3	80	381	305	384	350	697	440	817	530	150
4	100	457	356	460	500	768	440	935	1530	250
6	150	610	508	613	600	1025	520	1081	2071	510
8	200	737	660	740	700	1130	600	1513	3440	980
10	250	838	787	841			800	1673	7632	1230
12※	300	965	914	968			600	1400		1650
14※	350	1029	991	1038			600	1600		2400
16※	400	1130	1092	1140			700	1820		2600
18※	450	1219		1232			800	2000		3000
20※	500	1321		1334
24※	600	1549		1568

CLASS 1500
Size		L			W	H	W1	H1	TRQ	WT
NPS inch	DN mm	RF (BW Long Pattern) mm	BW Short Pattern mm	RTJ mm	mm	mm	mm	mm	N.m	RF Kg	BW Short Pattern Kg
2	50	368	216	371	350	594	310	650	352	90	65
2-1/2	65	419	254	422	400	676	440	860	730	123	100
3	80	470	305	473	450	778	440	949	930	200	170
4	100	546	406	549	560	880	520	1189	1820	365	330
6	150	705	559	711			600	1387	3870	550	425
8	200	832	711	842			700	1481	7838	1270	1140
10※	250	991	864	1001			800	1573	12828	1513	1370
12※	300	1130	991	1146			800	1831	24093	1950	1790
14※	350	1257	1067	1276			1000	2039	26924	2520	2313
16※	400	1384	1194	1406
18※	450	1537		1559
20※	500	1664		1686
24※	600	1943		1971

CLASS 2500
Size		L			W	H	W1	H1	TRQ	WT
NPS inch	DN mm	RF (BW Long Pattern) mm	BW Short Pattern mm	RTJ mm	mm	mm	mm	mm	N.m	RF Kg	BW Short Pattern Kg
2	50	451	279	454	450	760	440	876	502	210	175
2-1/2	65	508	330	514	500	800	440	925	810	310	225
3	80	578	368	584	560	920	520	1040	960	413	267
4	100	673	457	683			520	1155	2100	531	390
6	150	914	610	927			700	1350	6711	713	500
8※	200	1022	762	1038			800	1530	14880	1580	1330
10※	250	1270	914	1292
12※	300	1422	1041	1444

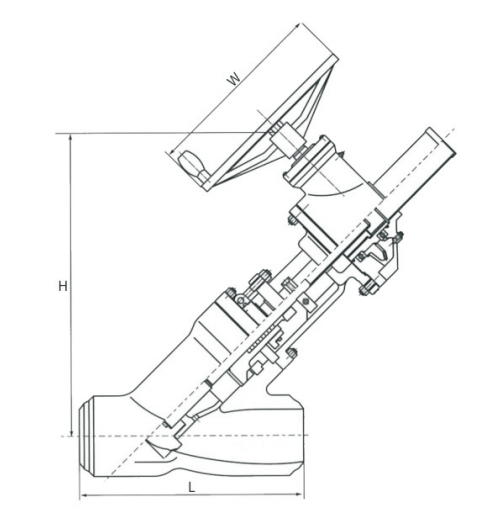

Reverse flow Figure (indicated by "※" in the data table)

CLASS 600						CLASS 900
Size		L	W	H	WT	L	W	H	WT
NPS inch	DN mm	(BW) mm	mm	mm	(BW) Kg	(BW) mm	mm	mm	(BW) Kg
2	50	292	310	450	35	368	310	500	50
2-1/2	65	330	310	605	45	419	440	650	75
3	80	356	440	665	60	381	440	750	120
4	100	432	440	685	120	457	440	780	210
6	150	559	520	1080	330	610	520	910	415
8	200	660	600	1150	580	737	600	1160	850
10	250	787	700	1200	960	838	700	1280	1250
12	300	838	600	1180	1230	965	600	1190	1765
14	350	889	600	1360	1670	1029	700	1340	2250
16	400	991	700	1550	2000	1130	800	1630	2850
18	450	1092	700	1670	2750	1219	800	1780	3500
20	500	1194	800	1800	3650	1321	1000	1850	4210
24	600	1397	800	1880	4300	1549	1000	1980	5100

CLASS 1500						CLASS 2500
Size		L	W	H	WT	L	W	H	WT
NPS inch	DN mm	(BW) mm	mm	mm	(BW) Kg	(BW) mm	mm	mm	(BW) Kg
2	50	368	310	500	50	451	440	750	90
2-1/2	65	419	440	650	75	508	440	780	120
3	80	470	440	750	130	578	520	820	155
4	100	546	530	933	325	673	520	1010	360
6	150	705	600	1122	550	914	600	1250	635
8	200	832	700	1257	995	1022	700	1292	1330
10	250	991	800	1240	1492	1270	800	1233	2272
12	300	1130	800	1400	2315	1422	800	1280	3080
14	350	1257
16	400	1384
18	450	1537
20	500	1664
24	600	1943
