DESIGN AND MANUFACTURING STANDARDS
Design and Manufacturing according to API 602, ASME B16.34
End Dimension as per ASME B120.1, ASME B16.11
Inspection and test as per API 598
1/1

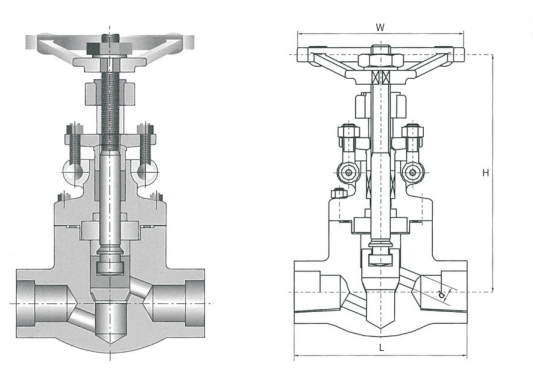

FORGED STEEL THREAD, SOCKET WELDED GLOBE VALVE
Negotiable
China
No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City
13162305541
13706691500
gjb-cln36661@shhh-valve.com
Product Introduction
Product Parameters
|
CLASS 150~800 |
||||||||
|
Size |
L (mm) |
W (mm) |
H Open (mm) |
Weight (Kg) |
||||
|
inch |
mm |
Reduce Bore |
Full Bore |
|||||
|
Reduce Bore |
Full Bore |
Reduce Bore |
Full Bore |
|||||
|
1/4 |
|
8 |
|
79 |
100 |
153 |
1.9 |
|
|
3/8 |
1/4 |
10 |
8 |
79 |
100 |
153 |
1.9 |
2.1 |
|
1/2 |
3/8 |
15 |
10 |
79 |
100 |
158 |
1.9 |
2.1 |
|
3/4 |
1/2 |
20 |
15 |
92 |
100 |
192 |
2.1 |
2.3 |
|
1 |
3/4 |
25 |
20 |
111 |
125 |
252 |
3.3 |
3.6 |
|
1-1/4 |
1 |
32 |
25 |
120 |
160 |
252 |
7.5 |
7.8 |
|
1-1/2 |
1-1/4 |
40 |
32 |
152 |
160 |
289 |
7.5 |
8.2 |
|
2 |
1-1/2 |
50 |
40 |
172 |
180 |
330 |
11.4 |
12.0 |
|
|
2 |
|
50 |
200 |
240 |
370 |
|
150 |
|
CLASS 900~1500 |
||||||||
|
Size |
L (mm) |
W (mm) |
H Open (mm) |
Weight (Kg) |
||||
|
inch |
mm |
Reduce Bore |
Full Bore |
|||||
|
Reduce Bore |
Full Bore |
Reduce Bore |
Full Bore |
|||||
|
|
1/4 |
8 |
|
111 |
100 |
207 |
2.0 |
|
|
1/4 |
3/8 |
10 |
8 |
111 |
100 |
207 |
2.2 |
2.0 |
|
3/8 |
1/2 |
15 |
10 |
111 |
100 |
207 |
2.4 |
2.2 |
|
1/2 |
3/4 |
20 |
15 |
111 |
100 |
207 |
3.8 |
2.4 |
|
3/4 |
1 |
25 |
20 |
130 |
125 |
240 |
4.2 |
3.8 |
|
1 |
1-1/4 |
32 |
25 |
152 |
160 |
258 |
8.0 |
4.2 |
|
1-1/4 |
1-1/2 |
40 |
32 |
172 |
160 |
290 |
13.2 |
8.0 |
|
1-1/2 |
2 |
50 |
40 |
220 |
180 |
337 |
16.8 |
13.2 |
|
2 |
|
|
50 |
235 |
200 |
354 |
|
16.8 |
