CHINESE STANDARD CAST STEEL GLOBE VALVE

Negotiable
Shanghai Huhang Valves Co., Ltd.
China
No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City
13162305541
13706691500
Online Contact
Favorite
Product Parameters

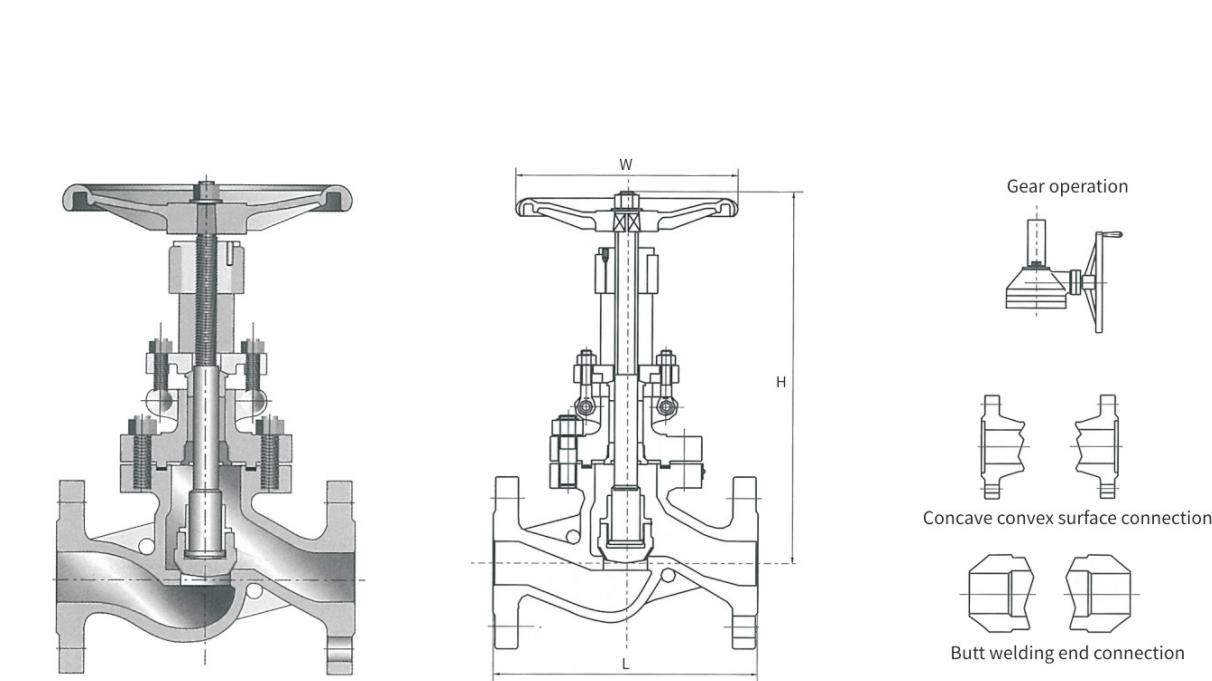

MAIN DIMENSION AND WEIGHT

PN16 PN25 PN40 PN64 PN100
SIZE L H W WT (PN16) WT (PN25) SIZE L H W WT SIZE L H (PN64) W (PN64) H (PN100) W (PN100) WT (PN64) WT (PN100)
mm mm mm mm Kg Kg mm mm mm mm Kg mm mm mm mm mm mm Kg Kg
50 230 350 240 18 20 50 230 373 240 23 50 300 410 280 425 320 35 38
65 290 370 280 24 26 65 290 408 280 33 65 340 450 320 465 320 52 58
80 310 400 280 30 36 80 310 436 280 43 80 380 485 360 485 400 63 69
100 350 415 320 40 50 100 350 480 320 59 100 430 537 400 548 400 84 93
125 400 460 360 62 88 125 400 588 360 91 125 500 631 400 645 450 150 165
150 480 510 400 106 118 150 480 611 400 122 150 550 646 450 650 450 210 225
200 600 710 400 130 170 200 600 720 400 195 200 650 813 500 820 500 313 370
250 730 786 450 261 290
300 850 925 500 380 420
