PRESSURE SEAL SWING CHECK VALVE

Negotiable

Shanghai Huhang Valves Co., Ltd.

Located Region:

China

Address:

No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City

Biz Consulting:

13162305541

WhatsApp:

13706691500

E-mail:

gjb-cln36661@shhh-valve.com

Online Contact

Favorite

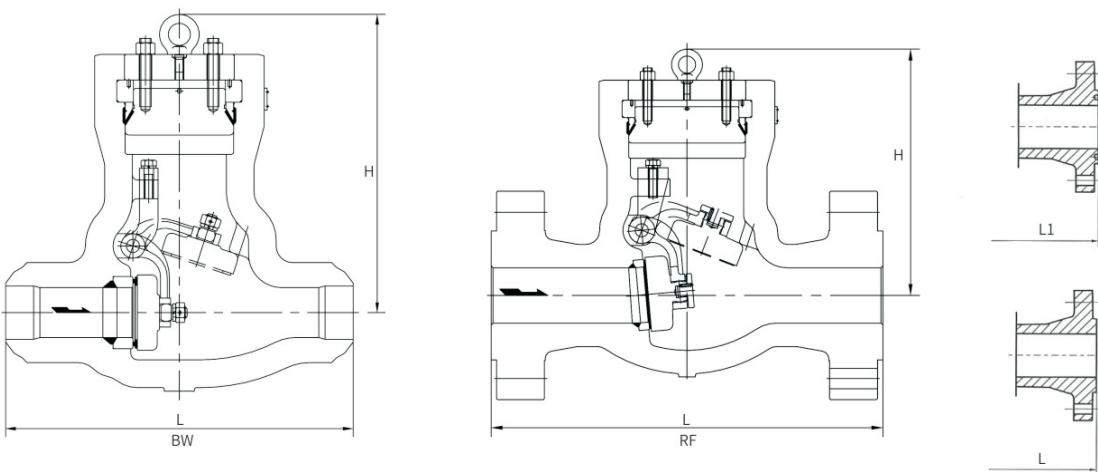

MAIN DIMENSION AND WEIGHT

CLASS 600						CLASS 900
SIZE		L		H	WT	L		H	WT
NPS inch	DN mm	RF(BW) mm	RTJ mm	mm	(RF) Kg	RF(BW) mm	RTJ mm	mm	(RF) Kg
2	50	292	295	207	27	368	371	233	58
2-1/2	65	330	333	227	32	419	422	245	76
3	80	356	359	251	49	381	384	269	100
4	100	432	435	320	86	457	460	337	140
6	150	559	562	339	185	610	613	424	294
8	200	660	664	468	365	737	740	542	700
10	250	787	791	524	557	838	841	559	744
12	300	838	841	589	670	965	968	685	870
14	350	889	892	622	944	1029	1038	780	1254
16	400	991	994	746	1300	1130	1140	825	1800
18	450	1092	1095	786	1760	1219	1232	911	2900
20	500	1194	1200	874	2200	1321	1334	935	3800
24	600	1397	1407	874	3350	1549	1568	1134	5500
26	650	1448	1461	1110	3740	1651	1673	1220	6600
28	700	1600	1613	1244	4630	1753	1775	1365	7600
30	750	1651	1664	1300	5560	1854	1876	1560	8900
32	800	1778	1794	1365	6750	1956		1650	12100
36	900	2083	2099	1599	8200	2156		1850	15280
40	1000	2286		1695	9000	2286		1995	17650
42	1050	2438		1700	10000	2438		2100	19960
48	1200	2540		2150	11200	2540		2380	29500

CLASS 1500						CLASS 2500
Size		L		H	WT	L		H	WT
NPS mm	DN mm	RF (BW) mm	RTJ mm	mm	(RF) Kg	RF (BW) mm	RTJ mm	mm	(RF) Kg
2	50	368	371	229	66	451	454	250	98
2-1/2	65	419	422	255	84	508	514	275	175
3	80	470	473	297	123	578	584	370	195
4	100	546	549	357	196	673	683	465	380
6	150	705	711	490	481	914	927	540	800
8	200	832	841	565	824	1022	1038	770	2000
10	250	991	1000	680	1252	1270	1292	850	3700
12	300	1130	1146	840	1440	1422	1445	950	4400
14	350	1257	1276	935	1745	1575		1150	7450
16	400	1384	1407	1025	2500	1727		1280	9100
18	450	1537	1559	1150	5400	1877		1420	11100
20	500	1664	1686	1280	6650	2029		1530	12300
24	600	1943	1972	1525	9800	2334		1650	13800
26	650	2083		1800	11500
28	700	2223		2050	13500
30	750	2362		2300	15500
