ZDS4033 type pressure transmitter

Negotiable

Tianjin Zhongdian Celestial Science and Technology Co., Ltd.

Located Region:

China

Address:

Building 10, Zhonglian Industrial Park, Zhongbei Town, Xiqing District, Tianjin

Biz Consulting:

+86 18526430909

E-mail:

18526430909@163.com

Online Contact

Favorite

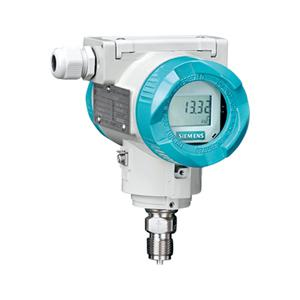

The ZDS4033 series pressure transmitters feature a user-friendly interface and high accuracy. Parameters can be set via control keys, HART communication, PROFIBUS PA, or Foundation Fieldbus interface. The transmitters, meeting the “intrinsic safety” and “explosion-proof” requirements, can be installed in potentially explosive atmospheres (Zone 1) or (Zone 0). The ZDS4033 series pressure transmitters are suitable for industrial fields with extreme chemical and mechanical loads. Electromagnetic compatibility across the range of 10kHz to 1GHz enables the ZDS4033 series to be used in environments with high electromagnetic radiation. Different models in the series can be used to measure gauge pressure, absolute pressure, differential pressure, level, and flow.

Input signal:	Range	Maximum pressure	Nominal measuring range
	0.01~1bar g	6bar g	1bar g
	0.04~4bar g	10bar g	4bar g
	0.16~16bar g	32bar g	16bar g
Output signal:	4~20mADC output, digital PROFIBUS PA or FF foundation bus signal, lower limit (continuously adjustable) 3.55mA,
	Factory preset 3.84mA; upper limit (continuously adjustable) 23mA,
	Factory preset 20.5mA or select 22.0mA.
Measurement accuracy	linear characteristic curve
	-r≤10 -10<r≤30 -30<r≤10 Long-term temperature drift	≤(0.0029·r+0.071)% ≤(0.0045·r+0.071)% ≤(0.005·r+0.005)% ≤(0.25r)%/5 years
	Effect of ambient temperature
	At -10 ~ +60 ℃	≤(0.08·r+0.1)%
	At -40 ~-10 ℃	≤(0.1·r+0.15)%/10

Technical parameters:

Selection table:

ZDS4033	Type selection code	Description
Instrument Type	A	Intelligent, imported sensor, high precision, high stability
Instrument Type	B	Intelligent, high stability
Communication Protocol	H	HART Communication
Communication Protocol	P	PROFIBUS-PA Communications
Cleaning of capsule sealing liquid/measuring part	1	Silicone oil regular
	2	Silicone oil degreasing cleaning treatment
	3	Fluorine oil degreasing cleaning treatment
Measuring range/Measuring range/Overload limit	B	1~100kPa-100 ~ 100kPa600kPa
	C	4~400kPa-100 ~ 400kPa1Mpa
	D	0.016~1.6 Mpa-0.1 ~ 1.6 Mpa.2Mpa
	E	0.063~6.3 Mpa-0.1 ~ 6.3Mpa10Mpa
	F	0.16~16Mpa-0.1 ~ 16Mpa25Mpa
	G	0.4~40Mpa-0.1 ~ 40Mpa60Mpa
	T1	Special requirements
Isolation Diaphragm/Related Fluid-receiving Parts	S	SUS316L stainless steel SUS316L stainless steel
	H	Hastelloy C- 276SUS316L stainless steel
	C	Hastelloy C- 276 Hastelloy C- 276
Process Connection	0	G1/2 External thread pipe connector
	1	1/2-14NPT internal thread
	2	With oval flange (installation hole Φ12mm, not suitable for range G option)
	T2	Special requirements
Explosion-proof	A	No explosion-proof
	B	Intrinsically safe EXiallCT6
	D	Flameproof EXdIICT6
Electrical Interface	1	1/2-14NPT internal thread, two wiring ports
	2	M20 × 1.5 internal thread, two wiring ports
	3	1/2NPT electrical connector + sealing plug
	4	1/2NPT flameproof electrical connector + sealing plug
	5	M20 × 1.5 electrical connector + sealing plug
	6	M20 × 1.5 flameproof electrical connector + sealing plug
	T3	Special requirements
Display header	N	Without display header
	D	LCD Display Header
	T4	Special requirements
Mounting bracket	A	Carbon steel mounting bracket
	B	Stainless steel mounting bracket
	N	No mounting bracket
Selection example	ZDS4033BH1DS0A4NN
Ordering Method	CDW selection personnel can be ignored
