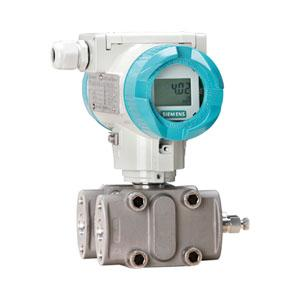

ZDS4433 differential pressure transmitter

Negotiable

Tianjin Zhongdian Celestial Science and Technology Co., Ltd.

Located Region:

China

Address:

Building 10, Zhonglian Industrial Park, Zhongbei Town, Xiqing District, Tianjin

Biz Consulting:

+86 18526430909

E-mail:

18526430909@163.com

Online Contact

Favorite

The ZDS4433 differential pressure transmitters feature a user-friendly interface and high accuracy. Parameters can be set via control keys, HART communication, PROFIBUS PA, or Foundation Fieldbus interface. The transmitters, meeting the “intrinsic safety” and “explosion-proof” requirements, can be installed in potentially explosive atmospheres (Zone 1) or (Zone 0).

The ZDS4433 differential pressure transmitters are suitable for industrial fields with extreme chemical and mechanical loads. Electromagnetic compatibility across the range of 10kHz to 1GHz enables the ZDS4433 differential pressure transmitters to be used in environments with high electromagnetic radiation. Different models in the series can be used to measure gauge pressure, absolute pressure, differential pressure, level, and flow.

Technical parameters:

Input signal:	Range	Maximum pressure	Nominal measuring range
	0.01~1barg 0.04~4barg 0.16~16barg	6barg 10barg 32barg	1barg 4barg 16barg
Output signal:	4~20mADC output, digital PROFIBUSPA or Foundation bus signal, lower limit (continuously adjustable) 3.55mA, Factory preset 3.84mA; upper limit (continuously adjustable) 23mA, Factory preset 20.5mA or select 22.0mA.
				Measurement accuracy:	linear characteristic curve
-r≤10 -30<r≤100 Long-term temperature drift	≤(0.0029·r+0.071)% ≤(0.0045·r+0.071)% ≤(0.005·r+0.005)% ≤(0.25r)%/5 years
			Effect of ambient temperature
			At -10 ~ +60 ℃		≤(0.08·r+.1)%
			At -40 ~-10 ℃		≤(0.1·r+.15)%/10℃

Selection table:

ZDS4433	Type selection code	Description
Instrument Type	A	Intelligent, imported sensor, high precision, high stability
Instrument Type	B	Intelligent, high stability
Communication Protocol	H	HART Communication
Communication Protocol	P	PROFIBUS-PA Communications
Cleaning of capsule sealing liquid/measuring part	1	Silicone oil regular
	2	Silicone oil degreasing cleaning treatment
	3	Fluorine oil degreasing cleaning treatment
Measuring range/Measuring range/Overload limit	D	0.25~25kPa -25 ~ 25kPa16MPa
	E	0.6~60kPa -60 ~ 60kPa16Mpa
	F	1.6~160Kpa -160 ~ 160Kpa16Mpa
	G	5~500Kpa -500 ~ 500Kpa16Mpa
	H	0.03~3Mpa -3 ~ 3Mpa16Mpa
	T1	Special requirements
Isolation Diaphragm/Related Fluid-receiving Parts	S	SUS316L stainless steel SUS316L stainless steel
	H	Hastelloy C- 276 SUS316L stainless steel
	C	Hastelloy C- 276 Hastelloy C- 276
	T	Tantalum Tantalum
	M	Monel alloy Monel alloy
	G	Gold Gold
	T2	Special requirements
Process Connection	0	No process connection, 1/4NPT internal thread on chamber flange, exhaust and drain at the rear
	1	No process connector, 1/4NPT internal thread on chamber flange, exhaust and drain on side
	2	Process connector with 1/2NPT internal thread, exhaust and drain at the rear
	3	Process connector with 1/2NPT internal thread, exhaust and drain on the side
	T3	Special requirements
Explosion-proof	A	No explosion-proof
	B	Intrinsically safe EXiallCT6
	D	Flameproof EXdIICT6
Electrical Interface	1	1/2-14NPT internal thread, two wiring ports
	2	M20 × 1.5 internal thread, two wiring ports
	3	1/2NPT electrical connector + sealing plug
	4	1/2NPT flameproof electrical connector + sealing plug
	5	M20 × 1.5 electrical connector + sealing plug
	6	M20 × 1.5 flameproof electrical connector + sealing plug
	T4	Special requirements
Display header	N	Without display header
	D	LCD Display Header
	T5	Special requirements
Mounting bracket	A	Horizontal mounting bracket (carbon steel)
	B	Horizontal mounting bracket (stainless steel)
	C	Vertical mounting bracket (carbon steel)
	D	Vertical mounting bracket (stainless steel)
	N	No mounting bracket
Selection example	ZDS4433BH1DS0A4NN
Ordering Method	CDW selection personnel can be ignored
