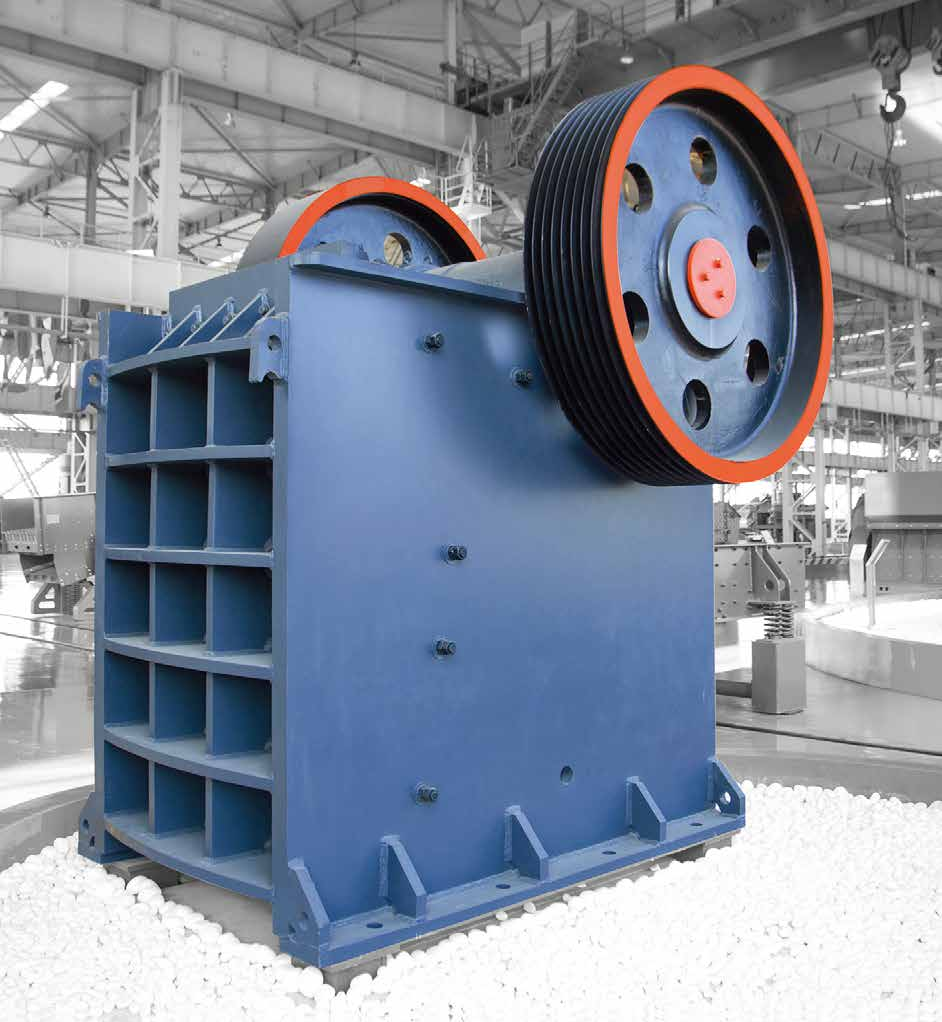

Product Introduction:
The PE series jaw crusher features a simple structure, with a deep crushing chamber design and a frame constructed using integral welding technology. The motion of the moving jaw has been optimized, significantly enhancing equipment performance compared to traditional jaw crushers, resulting in more stable and reliable operation.
Table of Specifications and Performance Parameters
|
Model |
Feed inlet size |
Maximum feed particle size |
Adjustment range of discharge port |
Processing capacity |
Speed of eccentric shaft |
Motor power |
Overall dimension |
|
PE Series |
(mm) |
(mm) |
(mm) |
(t/h) |
(r/min) |
(kw) |
(mm) |
|
PE600 × 900 |
600 × 900 |
500 |
65-160 |
90-180 |
250 |
55-75 |
2520 × 1840 × 2303 |
|
PE750 × 1060 |
750 × 1060 |
630 |
80-140 |
130-260 |
250 |
90-110 |
2620 × 2302 × 3110 |
|
PE900 × 1200 |
900 × 1200 |
750 |
95-200 |
220-380 |
200 |
132 |
3789 × 2826 × 3025 |
|
PE1000 × 1200 |
1000 × 1200 |
850 |
195-265 |
280-500 |
200 |
132 |
3889 × 2826 × 3025 |
|
PE1200 × 1500 |
1200 × 1500 |
1020 |
150-300 |
460-900 |
190 |
200 |
4930 × 3150 × 3700 |
Note: The output is the approximate throughput measured by medium hardness material. Actual results will vary due to differences in feed, particle size, rock type and material moisture content.
