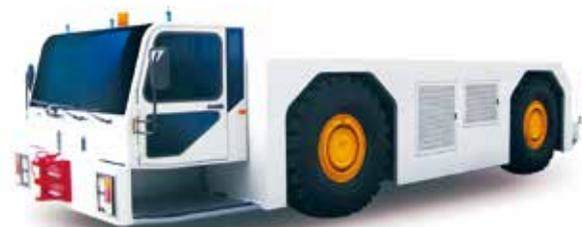

Guangtai offers tow tractor models WGQY45, WGQY50 and GQY70B for clients who need to handle wide-body aircrafts.
Engine protection;
Emergency steering;
Emergency braking;
Emergency forward/backward;
Interlock between hand brake and driving.
Front-wheel/Four-wheel/Crab steering;
Rear-wheel automatic alignment;
Fully hydraulic steering and braking system;
Electronic controlled shifting gearbox;
Auto lubrication system.
| WGQY45 | WGQY50 | GQY70B | |
|---|---|---|---|
| ERJ-145 | ● | ● | ● |
| ARJ | ● | ● | ● |
| B737 | ● | ● | ● |
| B757 | ● | ● | ● |
| B767 | ● | ● | ● |
| B777 | ● | ● | ● |
| B787 | ● | ● | ● |
| B747(-100,-100SP,-300) | ● | ● | ● |
| B747(-200,-400) | ● | ● | ● |
| B747-800 | ● | ● | |
| A319 | ● | ● | ● |
| A320 | ● | ● | ● |
| A340 | ● | ● | ● |
| A350 | ● | ● | ● |
| A380 | ● |
| WGQY45 | WGQY50 | GQY70B | |
|---|---|---|---|
| Self-Weight | 33-43 t | 50 t | 65 t |
| Max. Draw Bar Pull | 258-320 kN | 396 kN | 460 kN |
| Aircraft MTOW | ≤ 450 t | ≤ 500 t | ≤ 700 t |
| Max. Driving Speed | 30 km/h | 30 km/h | 30 km/h |
| Min. Turning Radius | Front-wheel 9,450 mm Four-wheel 5,190 mm |
Front-wheel 9,400 mm Four-wheel 5,250 mm |
Front-wheel 10,500 mm Four-wheel 6,300 mm |
| Cab Lifting Height | 550 mm | 550 mm | 550 mm |
| MAIN CONFIGURATION | OPTIONAL | ||||
|---|---|---|---|---|---|
| WGQY45 | WGQY50 | GQY70B | |||
| Engine | Cummins/Deutz | Deutz | Deutz | Reversing Camera | 360° Panorama Camera |
| Transmission | ZF | DANA | ZF | Reversing Radar | Telemetry |
| Axle | KESSLER | KESSLER | KESSLER | Driving Recorder | |
