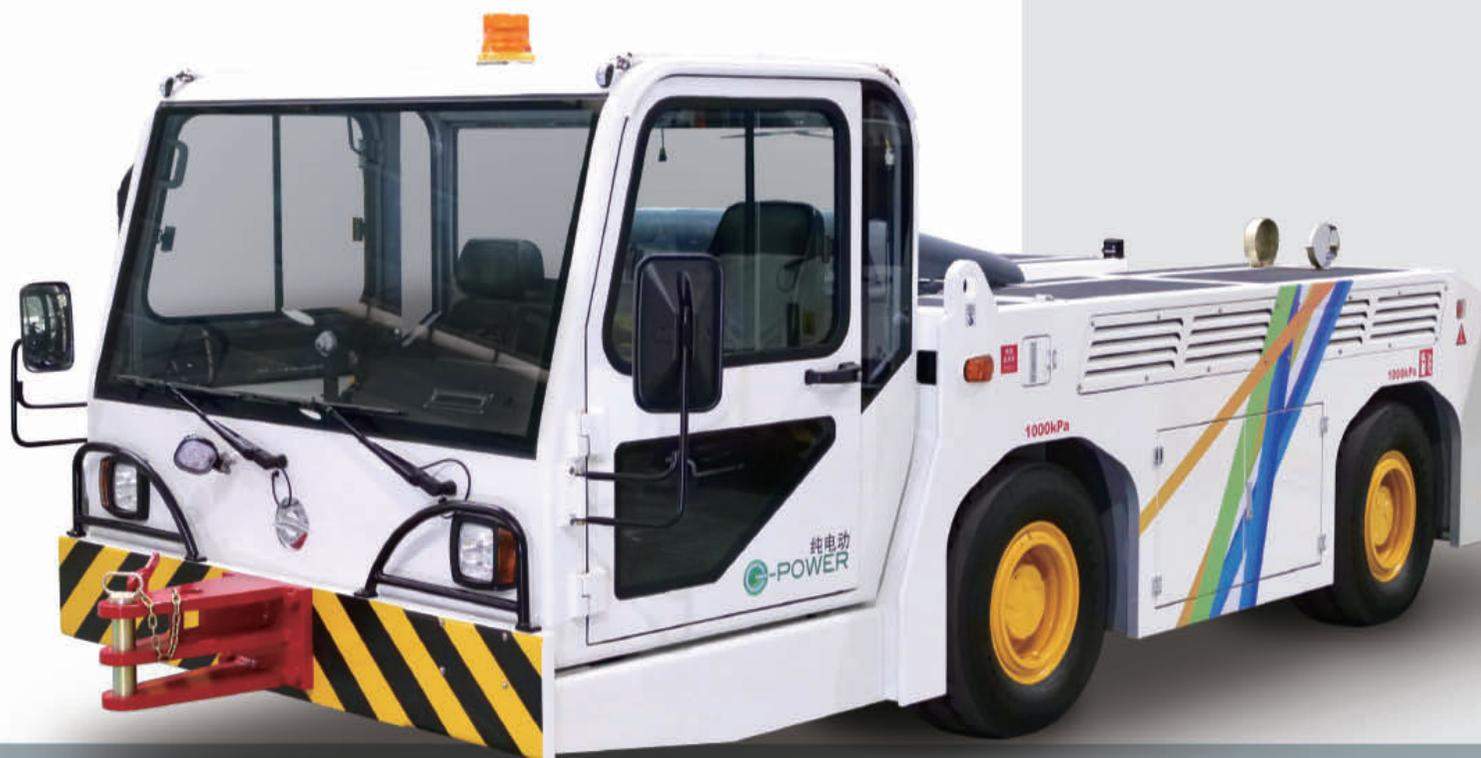

GT15D 15-t Electric Aircraft Tow Tractor

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

This model GT15D is a perfect solution to perform push and tow operations on narrow-body aircrafts.

  • LFP Battery
  • High Voltage System
  • Low Temperature Suitable
  • Automatic Fire Suppression
  • Telemetry

Features

  • Front-wheel / Four-wheel / Crab steering
  • Automatic wheel alignment
  • Fully-hydraulic steering and braking system
  • Electronic-controlled shifting gearbox

Safety

  • Emergency steering
  • Emergency braking
  • Automatic Fire Suppression
  • Crash barrier against damage of battery box
  • Interlock protection between charging and driving function
  • Interlock between parking brake and driving, etc.
Product Parameters



Main Configuration OPTIONAL
Battery CATL, LFP battery Face Recognition
Motor Greatland, PMSM motor 360° Panorama Camera
Axle DANA Telemetry
Battery Capacity 140.95kWh

Parameters

Dimensions 4,800mm×2,140mm×1,930mm(w/o coupling)
Max. Draw Bar Pull 132 kN
Charging Time min. 1 h
Gross Weight 13,000-16,000kg
Min. Turning Radius Front-wheel 4,900 mm
Four-wheel 3,075 mm
Max. Driving Speed 32 km/h
Travel Range 130 km
Temperature Range -35-60°C

Applicable Aircraft

  GT15D
ARJ21
CRJ series
B727
B737
B757
B767
A310
A319
A320
