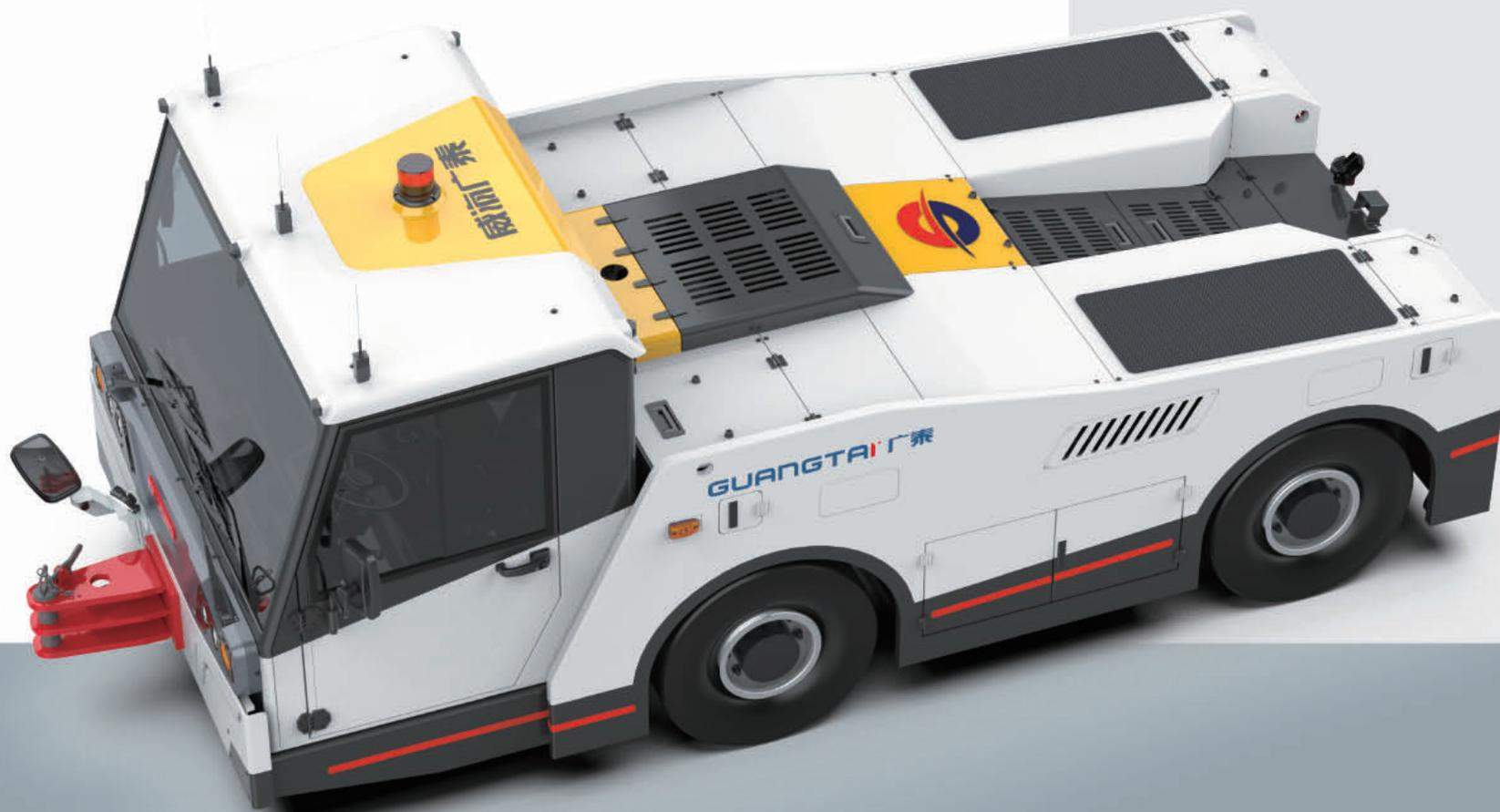

GT15D BULL 15-t Electric Aircraft Tow Tractor

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

The all new GT15D-BULL Electric Aircraft Tow Tractor is based on an innovative and highly efficient structure with new design, which performs push and tow operations on narrow-body aircrafts.

  • LFP Battery
  • High Voltage System
  • Low Temperature Suitable
  • Automatic Fire Suppression
  • Telemetry

Features

  • Upgraded design of "BULL";
  • Smart distribution system without relay and fuse;
  • Accurate fault positioning with indicator and explanation.

Safety

  • Electric emergency steering;
  • Emergency braking;
  • Automatic Fire Suppression;
  • Crash barrier against damage of battery box;
  • Battery and Motor system International Protection ≥IP67;
  • Interlock protection between charging and driving function;
  • Interlock between parking brake and driving, etc.
Product Parameters



MAIN CONFIGURATION OPTIONAL
Battery CATL, LFP battery
Face Recognition
360° Panorama Camera
Motor PMSM motor
Axle DANA
Battery Capacity 140.95kWh

PARAMETERS

Dimensions 4,800mm×2,140mm×2,100mm
Max. Draw Bar Pull 120 kN
Charging Time min. 1 h
Gross Weight 12,000kg-16,000kg
Min. Turning Radius Front-wheel 5550±200mm
Four-wheel 3550±200mm
Max. Driving Speed 30 km/h
Travel Range 130 km

APPLICABLE

  GT15D
ARJ21
CRJ series
B727
B737
B757
B767
A310
A319
A320
