GT50D TIGER 50-t Electric Aircraft Tow Tractor

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

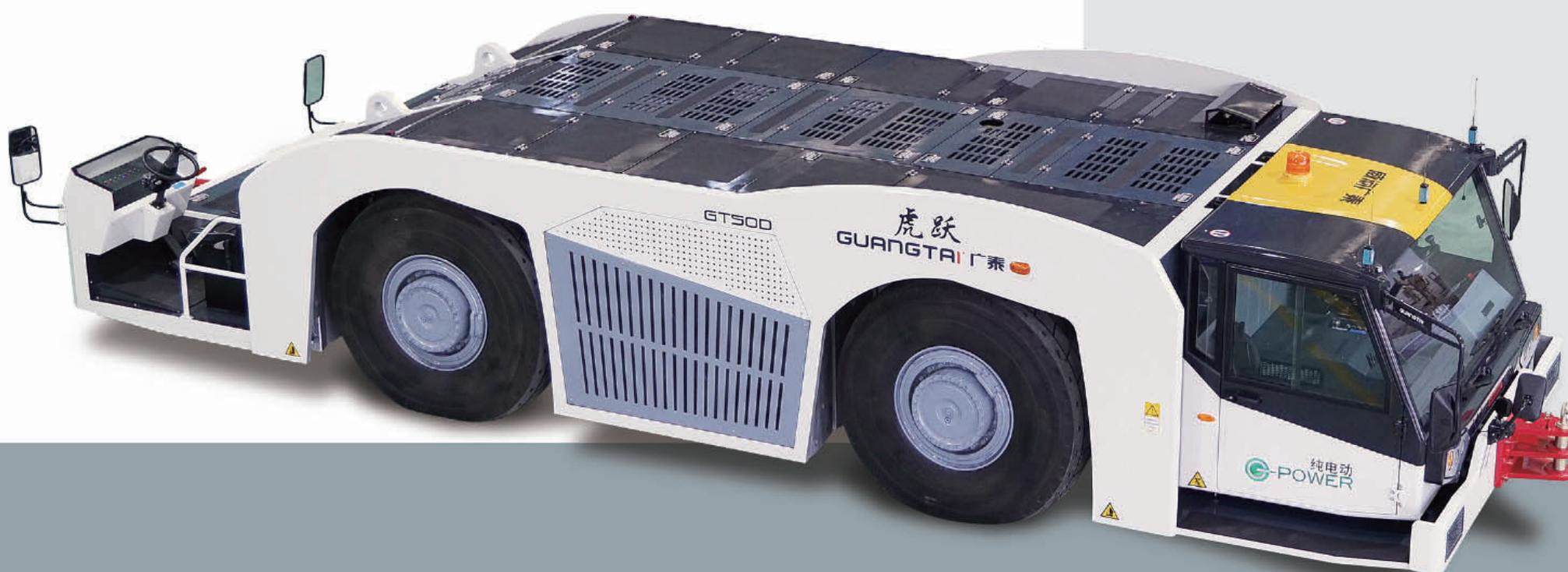

The all new GT50D-TIGER Electric Aircraft Tow Tractor is based on an innovative and highly efficient structure. This model can be used to push and tow wide-body aircrafts.

  •  LFP Battery
  •  High Voltage System
  •  Low Temperature Suitable
  •  Automatic Fire Suppression
  •  Telemetry

Features

  • Front-wheel / Four-wheel / Crab steering;
  • Automatic wheel alignment;
  • Electronic-controlled hydraulic steering and braking system.

Safety

  • Emergency steering;
  • Emergency braking;
  • Automatic Fire Suppression;
  • Crash barrier against damage of battery box;
  • Interlock protection between charging and driving function;
  • Interlock between hand brake and driving, etc.
Product Parameters



Main Configuration OPTIONAL
Battery CATL, LFP battery Face Recognition
Motor Jing-Jin, PMSM motor On-board Charger
Battery Capacity 579.6V / 302Ah / 350.07kWh 360° Panorama Camera
Axle Kessler Telemetry

Parameters

Dimensions 7610mmX2900mmX1970mm (w/o coupling)
Max. Draw Bar Pull 396 kN
Charging Time min. 3 h
Gross Weight 50,000 kg
Min. Turning Radius Fron-wheel 9,400 mm
Four-wheel 5,250 mm
Max. Driving Speed 30 km/h
Travel Range 130 km
Temperature Range -35-60°C

APPLICABLE

  GT50D
B747
B777
B787
A330
A340
A350
MD11
DC10
