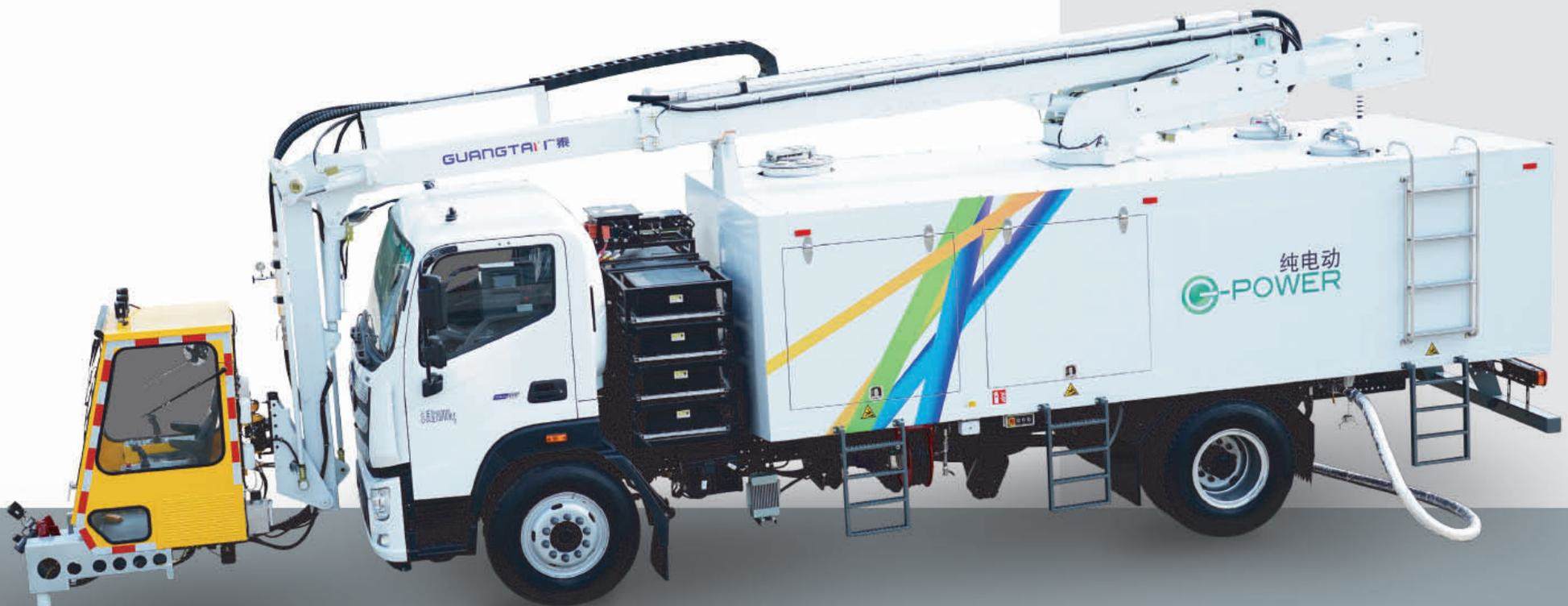

WGCB40PD Electric Aircraft Deicer

Negotiable
Weihai Guangtai Airport Equipment Co., Ltd.
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

WGCB40PD is truly zero emission, energy-saving and environmentally friendly, greatly reducing the energy consumption.

Features

  • Zero emission;
  • Low temperature applicability;
  • Intelligent heating system;
  • Retrieval system for work arm.

Safety

  • Emergency stop buttons;
  • Anti-collision sensors;
  • Low fluid level protections.

APPLICABLE

Applicable to all known civil aircraft types except A380.

Product Parameters



MAIN CONFIGURATION OPTIONAL
Chasis BAIC FOTON
Battery CATL, LFP battery Aircraft Damage Prevention System
Hydraulic Pump Eaton 360° External Monitoring
Deice Pump MYERS Telemetry
Anti-icing Pump HARDI
Deicing Spray Gun TASK FORCE TIPS
Battery Capacity 246.68kWh

PARAMETER

Deicing Tank Capacity 5100L Anti-icing Tank Capacity 1000L
Deicing Spray Pressure 1.0MPa~1.3MPa Anti-icing Spray Pressure 0.4MPa~0.6MPa
Max. Flow Rate(de-icing) 220L/min Max. Flow Rate(anti-icing) 75~100L/min
Deicing Max. Range 25m Anti-icing Max. Range 15m
Rotation ±175° Rated Thermal Power 300kW
Working Height 14m Heat Efficiency 98%
Max. Drive Speed 8.5m Rated Voltage 380V
Basket Capacity 160kg Overall Dimensions 11455×2500×3750mm
