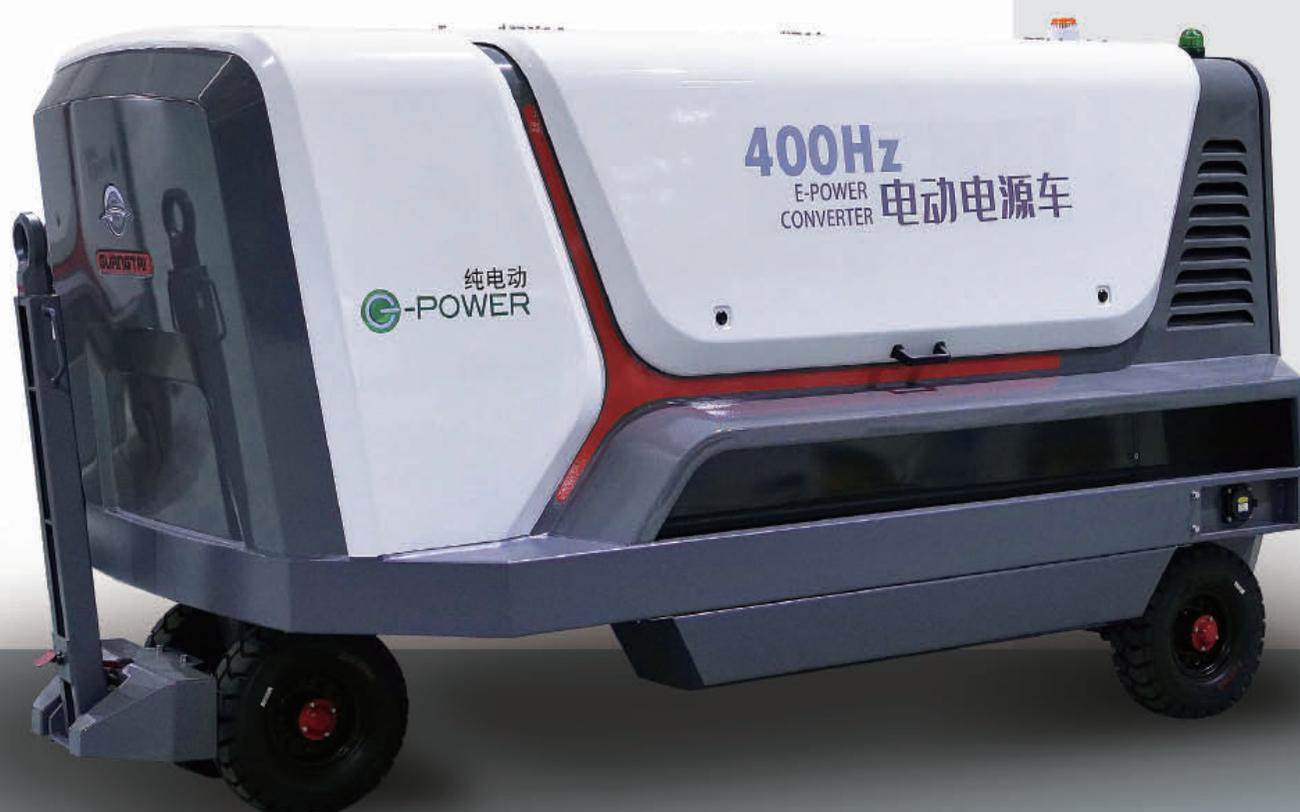

EHG Series Electric Ground Power Unit

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

Powered by lithium batteries, the WGJB series Electric Ground Power Unit supplies high quality consistent 400Hz AC power to aircraft wherever it's needed.

Features

  • Zero Emission in airports;
  • Manoeuvrable trailer chassis;
  • Modular Design;
  • Well proven Guangtai Solid State Converting technology.

Safety

  • Automatic Fire Suppression;
  • Battery fault protection;
  • High temperature protection, ground fault protection;
  • Over/under voltage, overload, short circuit protection at output;
  • Automatic shutdown to protect batteries;
  • Report Fault data with Telemetry System.

APPLICABLE

Applicable to all known civil aviation aircraft types.

Product Parameters
MAIN CONFIGURATION OPTIONAL
  EHG90M EHG180M
Battery CATL, LFP battery CATL, LFP battery
Capacity 175kWh 282kWh Telemetry
Rated Power 90kVA 180kVA On-board charge
Continuous Working Time ≥7h
at avg. 25kVA
≥3h, × 2 Output Ports
at avg. 50kVA ea
20/40/60kWh
Recharging Time min. 1.5h min. 2h
