API TWO-PIECES CAST STEEL FLOATING BALL VALVE

Negotiable
Shanghai Huhang Valves Co., Ltd.
China
No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City
13162305541
13706691500
Online Contact
Favorite
Product Parameters

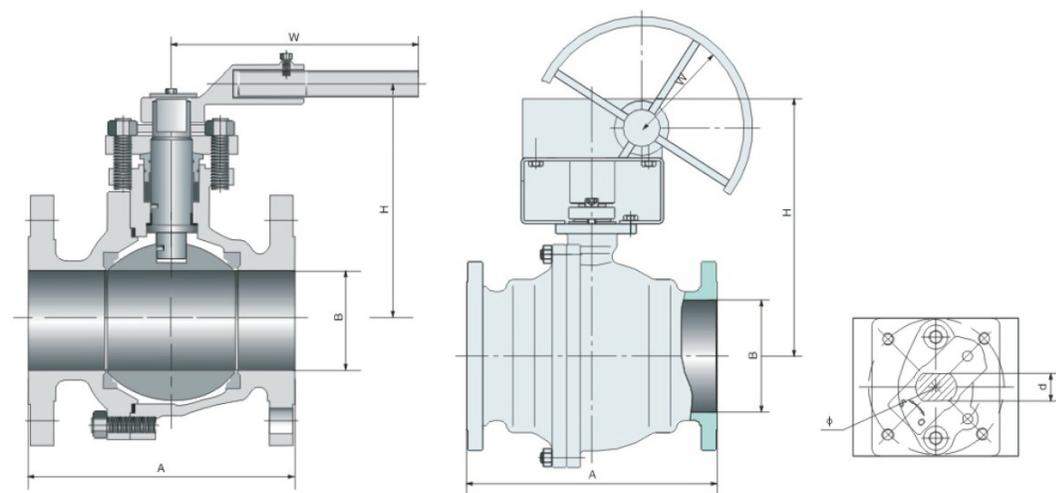

THE MAIN DIMENSIONS AND WEIGHT

CLASS 150
NPS
inch		 A B W H Φ d WT T ISO
TOP FLANGE
mm mm mm mm mm mm kg N.m
1/2 108 15 150 90 12 8 2.5 6 F03
3/4x1/2 117 15 150 90 12 8 3.1 6 F03
3/4 117 19 150 90 12 8 3.2 9 F03
1x3/4 127 19 150 90 12 8 4.8 9 F03
1 127 25 150 100 12 8 5.6 20 F04
1 1/2x1 165 25 150 100 12 8 7.0 20 F04
1 1/2 165 38 242 140 20 14 7.2 55 F07
2x1 1/2 178 38 242 140 20 14 9.7 55 F07
2 178 50 242 160 20 14 9.8 60 F07
2 1/2 191 64 242 170 20 14 16 100 F07
3x2 203 50 242 160 20 14 18 60 F07
3 203 76 350 205 30 20 20 110 F10
4x3 229 76 350 205 30 20 35 110 F10
4 229 100 460 225 30 20 35.2 140 F10
6x4 394 100 460 225 30 20 60 140 F10
6 394 152 750 320 40 30 96 600 F12
8x6 457 152 750 320 40 30 120 600 F12
8 457 204 900 370 50 36 165 1100 F14
10x8 533 204 900 370 50 36 190 1100 F14
*10 533 252 600 465 52 36 282 2000 F16

* the worm gear operation

CLASS 300
NPS
inch		 A B W H Φ d WT T ISO
TOP FLANGE
mm mm mm mm mm mm kg N.m
1/2 140 15 150 90 12 8 2.6 9 F03
3/4x1/2 152 15 150 90 12 8 3.5 9 F03
3/4 152 19 150 90 12 8 3.8 14 F03
1x3/4 165 19 150 90 12 8 5.6 14 F03
1 165 25 150 100 12 8 6 27 F04
1 1/2x1 191 25 150 100 12 8 10.2 27 F04
1 1/2 191 38 224 140 20 14 10.5 70 F07
2x1 1/2 216 38 224 140 20 14 15 70 F07
2 216 50 224 165 20 14 16 80 F07
2 1/2 241 64 224 170 20 14 28 95 F07
3x2 283 50 224 165 20 14 31.2 80 F07
3 283 76 350 205 30 20 36 120 F10
4x3 305 76 350 205 30 20 57 120 F10
4 305 100 460 225 30 20 60 240 F10
6x4 403 100 460 225 30 20 83 240 F10
6 403 152 750 320 40 30 118 950 F12
8x6 502 152 750 320 40 30 191 950 F12
*8 502 204 900 415 50 36 236 2100 F12



CLASS 600
NPS
inch		 A B W H Φ d WT T ISO
TOP FLANGE
mm mm mm mm mm mm kg N.m
1/2 165 13 150 90 12 8 2.8 16 F03
3/4x1/2 191 13 150 90 12 8 4 16 F03
3/4 191 19 150 90 12 8 5.3 21 F03
1x3/4 216 19 150 90 12 8 6.2 21 F03
1 216 25 150 100 12 8 7 45 F04
1 1/2x1 241 25 150 100 12 8 12.5 45 F04
1 1/2 241 38 242 140 20 14 13.6 96 F07
2x1 1/2 292 38 242 140 20 14 18.2 96 F07
2 292 50 242 160 20 14 19 130 F07
2 1/2 330 64 350 195 30 14 34 150 F10
3x2 356 50 242 160 20 14 35 130 F07
3 356 76 350 210 30 20 45 200 F07
4x3 432 76 550 209 30 20 55 340 F12
4 432 100 850 280 40 30 76 370 F12
6x4 559 100 850 280 40 30 106 370 F12

* the worm gear operation
