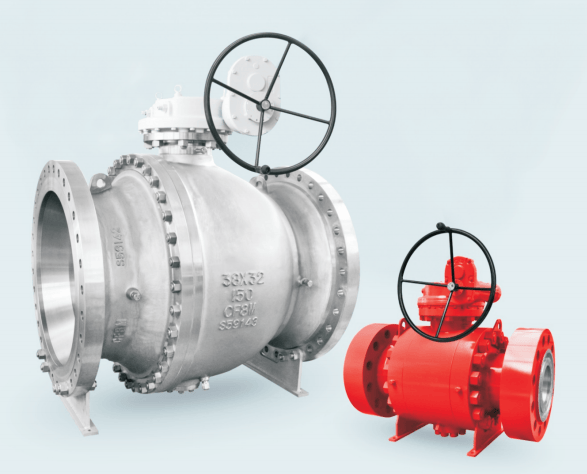

INTRODUCTION OF TRUNNION MOUNTED BALL VALVES PRODUCTS
A. USAGE Trunnion mounted ball valves are essential components to control the flow of fluids or gases in a pipeline, particularly in high-pressure applications, by utilizing a fixed ball mounted on trunnions which provide stability and allow for tight sealing with minimal operating torque, making them ideal for demanding industrial settings like oil and gas operations, chemical processing, and power generation plants.
B. CHARACTERISTIC
1. Double block and bleed: A "double block and bleed" (DBB) is a valve configuration used to completely isolate a section of a pipeline or system by employing two isolation valves ("blocks") with a bleed valve situated between them, allowing for the safe release of any trapped fluid or gas before maintenance or repairs are performed, thus enhancing safety during operations by preventing pressure build-up and potential leaks.
2. Anti static structure.
3. Fire safe structure.
4. The valve seat and stem are equipped with a grease injection system and are fire-resistant.
5. The valve stem has anti blowout function.
6. The ISO 5211 standard top flange design can meet the requirement of changing manual valves to worm gear or motor operation modes.
7. Locking device, manual or worm gear operation, can be equipped with a padlock device to prevent incorrect operation of the valve.
C. DESIGN, MANUFACTURING, AND INSPECTION STANDARDS
Design and manufacturing: API 6D, ASME B16.34, API 608, ISO 17292
End connection dimension: ASME B16.5, EN 1092, GB/T 12221, JB/T 79, GB/T 9113
Fire safe design: API 6D, JB/T 6899
Inspection and testing: API 6D, ISO 5208, API 598, GB/T 13927, GB/T 9092
Sulfur resistant materials: NACE MR 0175
