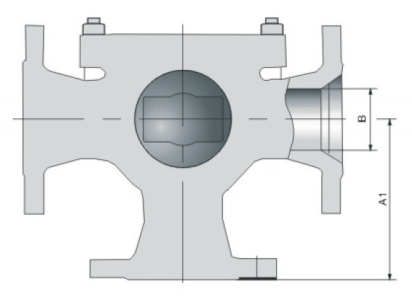

Three way L-type ball valve, capable of conducting in both directions, with a 1/4 rotation of the ball body, can switch between cutting off and conducting media in both directions.
Three-way T-type ball valve can have three or two directions simultaneously in a conducting state, and the ball can rotate 1/2 to cut off and conduct the medium.
| CLASS 150 (PN16~20) | ||||||
|---|---|---|---|---|---|---|
| NPS inch |
A | B | H | W | WT | T |
| mm | mm | mm | mm | kg | N.m | |
| 2 | 260 | 130 | 49 | 150 | 350 | 50 |
| 2 1/2 | 320 | 160 | 62 | 185 | 400 | 85 |
| 3 | 320 | 160 | 74 | 190 | 400 | 96 |
| 4 | 370 | 185 | 100 | 220 | 650 | 155 |
| 6 | 510 | 255 | 150 | 390 | 460 | 580 |
| 8 | 580 | 290 | 201 | 460 | 600 | 980 |
| 10 | 670 | 335 | 252 | 498 | 600 | 2080 |
| 12 | 720 | 360 | 303 | 540 | 600 | 3500 |
| CLASS 300 (PN25~50) | ||||||
|---|---|---|---|---|---|---|
| NPS inch |
A | B | H | W | WT | T |
| mm | mm | mm | mm | kg | N.m | |
| 2 | 26 | 130 | 49 | 150 | 350 | 70 |
| 2 1/2 | 320 | 160 | 62 | 185 | 400 | 90 |
| 3 | 320 | 160 | 74 | 190 | 400 | 120 |
| 4 | 370 | 185 | 100 | 220 | 650 | 250 |
| 6 | 510 | 255 | 150 | 390 | 460 | 1084 |
| 8 | 580 | 290 | 201 | 460 | 600 | 2244 |
| 10 | 670 | 335 | 252 | 498 | 600 | 4500 |
| 12 | 720 | 360 | 303 | 540 | 600 | 6000 |
* The worm gear operation
