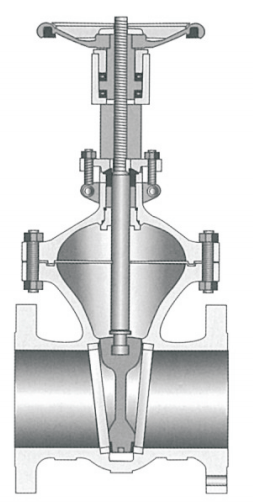

CAST STEEL WEDGE GATE VALVE

Name: CAST STEEL WEDGE GATE VALVE
Availability: InStock

Negotiable

Shanghai Huhang Valves Co., Ltd.

Located Region:

China

Address:

No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City

Biz Consulting:

13162305541

WhatsApp:

13706691500

E-mail:

gjb-cln36661@shhh-valve.com

Online Contact

Favorite

DESIGN AND MANUFACTURING STANDARDS
*Design and Manufacturing according to API600, ASME B16.34, ISO 10434, BS 1414, GB/T 12234
*Face to face according to ASME B 16.10, GB/T 12221
*End Dimension as per ASME B 16.5, HG/T20592-HG/T 20615, ASME B 16.25, GB/T 9113, API600, ISO 10434
*Inspection and test as per ISO 5208, API598, BS 6755, GB/T 26480, GB/T 13927

AMERICAN STANDARD PRESSURE TEST (MPa) (Body WCB)

Pressure Rate (Class)	Back Seat Pressure Test	Shell Test	High Pressure Seat Test	Low Pressure Seat Test
150	2.2	3.0	2.2	0.6
300	5.65	7.7	5.6
600	11.2	15.3	11.2
900	16.8	23	16.8
1500	28.1	38.3	28.1
2500	46.8	63.8	46.8

CHINESE STANDARD PRESSURE TEST (MPa) (Body WCB)

Pressure Rate (Class)	Back Seat Pressure Test	Shell Test	High Pressure Seat Test	Low Pressure Seat Test
1.6	1.76	2.4	1.76	0.6
2.5	2.75	3.75	2.75
4.0	4.4	6.0	4.4
6.4	7.04	9.6	7.04
10.0	11.0	15.0	11.0

MAIN COMPONENTS MATERIALS
Components Description	Cast Steel		Alloy Steel			Stainless Steel
Body	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 WC5	A351 CF8	A351 CF8M	A351 CF3	A51 CF3M	CD3MN
Bonnet	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 WC5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	CD3MN
Stem	A182 F6a	A182 F304	A182 F304	A182 F304	A182 F304	A182 F304	A182 F316	A182 F304L	A182 F316L	F51
Stud	A193 B7	A320 L7	A193 B16	A193 B16	A193 B16	A193 B8	A193 B8M	A193 B8	A193 B8M	A193 B8M
Nut	A194 2H	A194 7	A194 7	A194 7	A194 7	A194 8	A194 8M	A194 8	A194 8M	A194 8M
Yoke	A216 WCB	A52 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	CD3MN
Back seat	A182 F6a	A182 F304	A182 F304	A182 F304	A182 F304	A182 F304	A182 F316	A182 F304L	A182 F316L	F51
Gland ring	A276 410	A276 304	A278 304	A276 304	A276 304	A276 304	A276 316	A276 304	A276 316	F51
Gland flange	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	CD3MN

Note: 1. All parts of the valve are made of materials that comply with ASTM standards;

The above is the Huhang standard configuration. If the customer has special requirement, Huhang can select materials according to their working conditions.

MAIN DIMENSION AND WEIGHT

CLASS 150										CLASS 300
Size		L		Handwheel		Gear		TRQ	WT(RF)	L	Handwheel		Gear		TRQ	WT(RF)
NPS inch	DN mm	RF mm	BW mm	W mm	H mm	W1 mm	H1 mm	N.m	Kg	RF(BW) mm	W mm	H mm	W1 mm	H1 mm	N.m	Kg
2	50	178	216	250	340			21	20	216	250	340			28	24
2-1/2	65	190	241	250	400			27	30	241	250	390			36	36
3	80	203	283	280	403			39	33	282	280	412	250	553	54	47
4	100	229	305	300	447			64	49	305	300	450	310	611	89	69
5	125	254	381	300	544			75	60	381	350	618	310	800	92	89
6	150	267	403	350	600	310	827	87	75	403	400	618	310	831	135	123
8	200	292	419	400	746	310	999	115	120	419	400	761	440	1033	241	196
10	250	330	457	400	899	310	1223	178	205	457	500	937	440	1280	390	333
12	300	356	502	500	1056	310	1455	261	290	502	600	1090	520	1490	624	440
14	350	381	572	600	1187	310	1629	350	400	762	700	1265	520	1676	831	710
16	400	406	610	600	1353	440	1804	393	511	838	700	1398	520	1875	948	950
18	450	432	660	600	1511	440	2000	550	650	914	800	1541	600	2091	1279	1405
20	500	457	711	680	1669	440	2246	725	789	991			600	2352	1588	1720
22	550	483	762			440	2439	893	1050	1092			600	2622	2183	2260
24	600	508	813			520	2613	1120	1200	1143			600	2753	2799	2770
26	650	559	864			520	2949	1458	1570	1245			600	3055	3720	3090
28	700	610	914			600	3097	1720	1800	1346			700	3181	4404	3500
30	750	610	914			600	3302	2231	2560	1397			700	3309	5053	3800
32	800	660	965			600	3443	2412	3060	1524			800	3646	6319	5570
34	850	686	1016			600	3867	2643	3250	1626			800	3819	7321	5880
36	900	711	1016			600	3930	2966	3500	1727			800	3948	8358	6750
38	950	762	1016			600	4170	3668	3670	1778			800	4050	10231	7150
40	1000	813	1016			700	4364	4261	4800	1829			800	4200	11780	8460
42	1050	813	1016			700	4470	4885	5440	1880			800	4370	13679	9500
44	1100	838	1067			700	4680	5904	6300	1930			800	4550	16199	10400
46	1150	838	1067			700	4980	6716	6850	1930			800	4690	18263	11100
48	1200	864	1168			700	5114	7612	7900	2032			1000	4840	21454	12400
50	1250	914				700	5350	8876	8260	2083			1000	4970	24954	13000
52	1300	965				700	5578	10090	8500	2134			1000	5160	28801	14000
54	1350	991				800	5940	11610	9600	2185			1000	5210	33358	14700
56	1400	1050				800	6242	13531	12400	2235			1000	5310	36758	17000
58	1450	1143				800	6260	14410	14000	2260			1000	5460	40394	18500
60	1500	1270				800	6290	15780	15500	2286			1000	5600	45352	19800
62	1550	1270				800	6450	17348	16500
64	1600	1270				800	6670	19481	18000
66	1650	1300				1000	6900	22245	19600
68	1700	1300				1000	7114	24132	20000

CLASS 600										CLASS 900
Size		L		Handwheel		Gear		TRQ	WT(RF)	L		Handwheel		Gear		TRQ	WT(RF)
NPS inch	DN mm	RF(BW) mm	RTJ mm	W mm	H mm	W1 mm	H1 mm	N.m	Kg	RF(BW) mm	RTJ mm	W mm	H mm	W1 mm	H1 mm	N.m	Kg
2	50	292	295	250	375	250	474	39	39	368	371	300	490			71	72
2-1/2	65	330	333	250	414	250	545	52	52	419	422	350	547			102	101
3	80	356	359	300	494	250	591	74	88	381	384	350	547	310	665	125	130
4	100	432	435	350	580	310	697	123	114	457	460	400	650	310	792	198	197
5	125	508	511	400	648	310	892	182	170	559	562	450	695	310	900	295	290
6	150	559	562	500	714	310	937	314	285	610	613	600	830	310	996	447	375
8	200	660	664	600	878	440	1143	518	413	737	740	600	874	440	1126	812	635
10	250	787	791	600	1002	440	1359	935	650	838	841	650	1040	520	1468	1353	940
12	300	838	841	700	1140	520	1542	1215	800	965	968	700	1042	520	1674	1980	1250
14	350	889	892	700	1275	520	1638	1486	1140	1029	1038			600	1819	2602	1500
16	400	991	994			600	1966	2050	1700	1130	1140			600	2038	3820	2430
18	450	1092	1095			600	2092	2727	2100	1219	1232			600	2185	5061	2960
20	500	1194	1200			600	2291	3792	3062	1321	1334			700	2301	7123	3845
22	550	1295	1305			700	2508	4854	3750	1422	1441			700	2600	9120	5050
24	600	1397	1407			700	2767	5587	4480	1549	1568			800	2855	10851	6220
26	650	1448	1461			700	2918	7374	4960	1664				800	2960	13363	7400
28	700	1549	1562			800	3076	9606	5125	1778				800	3290	18177	7700
30	750	1651	1664			800	3356	11930	7300	1892				800	3460	22230	9900
32	800	1778	1794			800	3533	14473	7750	2004				1000	4205	26953	12000
34	850	1930	1946			800	3811	17513	9750	2083				1000	4390	32459	13200
36	900	2083	2099			800	4032	21332	11500	2232				1000	4465	38887	15000
38	950	2134				1000	4120	24835	12200
40	1000	2184				1000	4225	27976	14500
42	1050	2235				1000	4467	32888	16820
44	1100	2286				1000	4580	37938	191500
46	1150	2337				1000	4720	41960	21500
48	1200	2388				1000	4860	48563	23000
50	1250	2438				1000	5020	55499
52	1300	2489				1000	5230	63344
54	1350	2540				1000	5370	71892
56	1400	2591				1000	5430	78188

CLASS 1500
Size		L		Handwheel		Gear		TRQ	WT(RF)
NPS inch	DN mm	RF(BW) mm	RTJ mm	W mm	H mm	W1 mm	H1 mm	N.m	Kg
2	50	368	371	300	490	310	597	115	85
2-1/2	65	419	422	350	547	310	620	164	130
3	80	470	473	400	590	310	685	232	170
4	100	546	549	550	755	440	862	370	304
5	125	673	676	600	791	400	1020	589	510
6	150	705	711	680	903	520	1155	819	650
8	200	832	842			600	1336	1538	1100
10	250	991	1001			600	1513	2655	1600
12	300	1130	1146			600	1696	3652	2110
14	350	1257	1276			600	1851	5194	2700
16	400	1384	1406			700	1988	6955	3850
18	450	1537	1559			700	2198	9121	4860
20	500	1664	1586			800	2346	13201	6680
24	600	1943	1971			1000	2682	21551	8650
26	650	2083				1000	2860	27632	11500
28	700	2223				1000	3070	33962	13100
30	750	2362				1000	3190	40795	15500

CLASS 2500
Size		L		Handwheel		Gear		TRQ	WT(RF)
NPS inch	DN mm	RF(BW) mm	RTJ mm	W mm	H mm	W1 mm	H1 mm	N.m	Kg
2	50	451	454	350	565	310	679	175	130
2-1/2	65	508	514	350	610	310	770	295	200
3	80	578	584	400	707	310	862	333	245
4	100	673	683	550	755	440	988	518	460
5	125	794	807	600	785	440	1030	734	650
6	150	914	927	680	885	520	1170	1264	800
8	200	1022	1038			600	1285	2538	900
10	250	1270	1292			600	1568	4276	1500
12	300	1422	1444			700	1730	6998	2500
14	350	1549				700	1965	9343	2900
16	400	1676				800	2100	13464	4500
18	450	1829				800	2340	20409	7260
20	500	1956				1000	2530	23885	9550
24	600	2235				1000	2680	32261	12000
