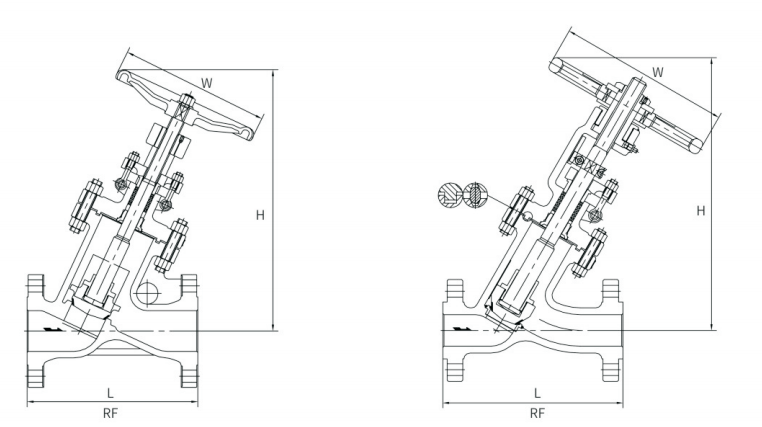

Y TYPE GLOBE VALVE

Negotiable

Shanghai Huhang Valves Co., Ltd.

Located Region:

China

Address:

No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City

Biz Consulting:

13162305541

WhatsApp:

13706691500

E-mail:

gjb-cln36661@shhh-valve.com

Online Contact

Favorite

DESIGN AND MANUFACTURING STANDARDS

Design and manufacturing according to BS 1873, ASME B16.34, GB 12235, API623

Face to face as per ASME B16.10

End dimension according to ASME B16.5, ASME B16.25, GB/T 9113, GB/T 12224

Inspection and test according to ISO5208, API598, BS 6755, GB/T 26480, GB/T 13927

CLASS 150									CLASS 300
Size		L	W	H	W1	H1	TRQ	WT (RF)	L	W	H	W1	H1	TRQ	WT (RF)
NPS inch	DN mm	RF (BW) mm	mm	mm	mm	mm	N.m	Kg	RF (BW) mm	mm	mm	mm	mm	N.m	Kg
2	50	203	220	450			422	24	267	220	450			72	32
2-1/2	65	216	250	475			68	32	292	250	480			90	40
3	80	241	280	510			80	38	318	280	520			168	70
4	100	292	320	570			130	60	356	320	590			300	82
6	150	406	400	685	310	795	240	110	444	450	720	310	670	855	200
8	200	495	450	810	310	890	490	200	559	500	790	440	850	1540	300
10	250	622			440	955	922	300	622			440	880	2560	535
12	300	698			440	980	1250	450	711			520	990	3510	770
14	350	787			520	1150	1865	680	838			600	1300	4610	1200
16	400	914			600	1450	2960	1050	914			600	1253	6174	1520
18※	450	978							978			800	1615
20※	500	1067							1016
24※	600	1295							1346

CLASS 600
Size		L	W	H	W1	H1	TRQ	WT (RF)
NPS inch	DN mm	RF (BW) mm	mm	mm	mm	mm	N.m	Kg
2	50	292	280	470			220	42
2-1/2	65	330	320	510			360	50
3	80	356	350	580	310	650	440	90
4	100	432	450	700	440	750	602	200
6	150	559	560	920	520	950	1820	450
8	200	660			600	1050	3875	650
10	250	787			600	1350	5395	1200
12	300	838			700	1500	9170	1450
14	350	889			700	1450	13245	2030
16※	400	991
18※	450	1092
20※	500	1194
24※	600	1397

CLASS 900
Size		L	W	H	W1	H1	TRQ	WT (RF)
NPS inch	DN mm	RF (BW) mm	mm	mm	mm	mm	N.m	Kg
2	50	368	350	530	310	620	285	110
2-1/2	65	419	400	630	310	700	360	125
3	80	381	350	670	440	780	530	155
4	100	457	500	770	440	820	1065	280
6	150	610	600	940	520	1000	2071	530
8	200	737			600	1200	3440	1020
10	250	838			700	1400	7632	1460
12※	300	965
14※	350	1029
16※	400	1130
18※	450	1219
20※	500	1321
24※	600	1549

CLASS 1500
Size		L		W	H	W1	H1	TRQ	WT (RF)
NPS inch	DN mm	RF (BW) mm	RTJ mm	mm	mm	mm	mm	N.m	Kg
2	50	368	371	350	530	310	620	352	110
2-1/2	65	419	422	400	650	440	720	730	150
3	80	470	473	450	700	440	800	930	230
4	100	546	549	560	820	520	850	1820	380
6	150	705	711			600	1150	3870	600
8	200	832	842			700	1650	7838	1100
10※	250	991	1001
12※	300	1130	1146
14※	350	1257	1276
16※	400	1384	1406
18※	450	1537	1559
20※	500	1664	1686
24※	600	1943	1971

CLASS 2500
Size		L		W	H	W1	H1	TRQ	WT (RF)
NPS inch	DN mm	RF (BW) mm	RTJ mm	mm	mm	mm	mm	N.m	Kg
2	50	451	454	450	700	440	800	502	250
2-1/2	65	508	514	500	750	440	850	810	310
3	80	578	584	560	870	520	920	960	400
4	100	673	683			520	1100	2100	650
6	150	914	927			600	1350	4300	1400
8※	200	1022	1038
10※	250	1270	1292
12※	300	1422	1444

Reverse flow Figure (indicated by " ※" in the data table)
