PISTON CHECK VALVE

Negotiable

Shanghai Huhang Valves Co., Ltd.

Located Region:

China

Address:

No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City

Biz Consulting:

13162305541

WhatsApp:

13706691500

E-mail:

gjb-cln36661@shhh-valve.com

Online Contact

Favorite

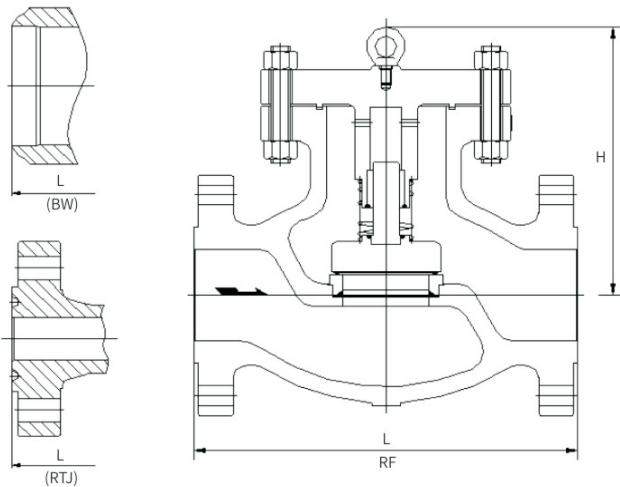

MAIN DIMENSION AND WEIGHT

CLASS 150						CLASS 300				CLASS 600
SIZE		L		H	W(RF)	L		H	W(RF)	L		H	W(RF)
NPS inch	DN mm	RF(BW) mm	RTJ mm	mm	Kg	RF/BW mm	RTJ mm	mm	Kg	RF/BW mm	RTJ mm	mm	Kg
2	50	203	216	189	12	267	183	182	17	292	295	193	22
2-1/2	65	216	229	198	15	292	198	215	30	330	333	217	26
3	80	241	254	203	18	318	208	249	37	356	359	231	39
4	100	292	305	236	30	356	372	265	57	432	435	288	69
5	125	330	343	252	50	400	416	280	80	508	511	330	132
6	150	356	369	265	70	445	460	298	104	559	562	388	148
8	200	495	508	312	101	533	549	334	162	660	664	458	292
10	250	622	635	350	149	622	638	433	237	787	791	511	446
12	300	699	711	385	229	711	727	478	366	838	841	532	536
14	350	787	800	450	278	838	854	547	466	889	892	575	755
16	400	864	877	515	407	864	880	610	603	991	994	625	1040
18	450	978	991	560	563	978	994	656	748	1092	1095	680	1408
20	500	978	991	582	675	1016	1035	691	924	1194	1200	740	1760
24	600	1295	1308	610	900	1346	1368	800	1126	1397	1407	780	2680
26	650	1295		910	957	1346		930	1900	1448	1461	1110	2992
28	700	1448		1047	1391	1499		1026	2240	1600	1613	1244	3704
30	750	1524		1095	1643	1594		1130	2944	1651	1664	1300	4448
32	800	1727		1150	1823	1727		1180	3104	1778	1794	1365	5400
36	900	1956		1182	2348	2083		1235	4024	2083	2099	1599	6560
40	1000	2159		1360	3150	2438		1385	5040	2286		1695	7200
42	1050	2261		1410	3825	2617		1460	5680	2438		1700	8000
48	1200	2566		1640	5025	3151		1810	7440	2540		2150	8960

CLASS 900						CLASS 1500				CLASS 2500
Size		L		H	WT	L		H	WT	L		H	WT
NPS mm	DN mm	RF (BW) mm	RTJ mm	mm	(RF) Kg	RF (BW) mm	RTJ mm	mm	(RF) Kg	RF (BW) mm	RTJ mm	mm	(RF) Kg
2	50	368	371	225	46	368	371	225	53	451	454	337	78
2-1/2	65	419	422	245	61	419	422	245	67	508	514	350	140
3	80	381	384	269	80	470	473	269	98	578	584	370	156
4	100	457	460	337	112	546	549	357	157	673	683	426	304
6	150	610	613	425	235	705	711	490	385	914	927	520	640
8	200	737	740	459	560	832	841	540	659	1022	1038	615	1600
10	250	838	841	540	595	991	1000	640	1002	1270	1292	730	2960
12	300	965	968	595	696	1130	1146	780	1152	1422	1445	840	3520
14	350	1029	1038	640	1003	1257	1276	835	1396	1575		905	5960
16	400	1130	1140	685	1440	1384	1407	890	2000	1727		950	7280
18	450	1219	1232	744	2320	1537	1559	960	4320	1877		1055	8880
20	500	1321	1334	820	3040	1664	1686	1090	5320	2029		1160	9840
