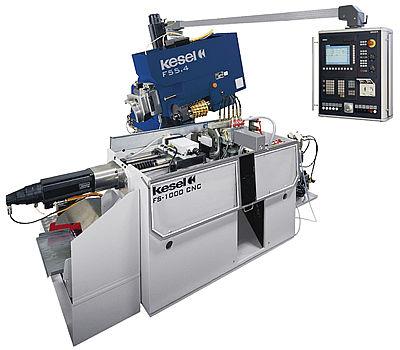

Bandsaw Blade Milling Machine FS-1000 CNC

The FS-1000 CNC is based on the concept of the L79-S2, which has been used by bandsaw blade manufactures for decades for milling the teeth in both car bon and bimetal bandsaw blades. This machine is equipped with a newly ......The FS-1000 CNC is based on the concept of the L79-S2, which has been used by bandsaw blade manufactures for decades for milling the teeth in both car bon and bimetal bandsaw blades. This machine is equipped with a newly designed milling head and outboard bearing removal assisting device. The control is a state of the art digital CNC control. The FS-1000 CNC is designed for efficient milling of bandsaw blades up to 4 inches in width. Our coiling systems in horizontal and vertical design provide a complete system for fully automatic milling of bandsaw blades. The FS-1000 CNC has 3 CNC axes standard and a digital display for the C axis, which is offered optionally as a CNC control axis. Even small lot production becomes profitable with the FS-1000 CNC. Description The FS-1000 CNC bandsaw blade milling machine is designed for manufacturing bands of up to 100 mm width. The machine is offered with the milling head design F55.4. The sophisticated CNC-control Siemens 802 D with integrated hand wheel unit offers a high degree of programming flexibility. Technical Data Dimensions Length x Width x Height Weight Machine 2500 x 2300 x 2000 mm 5.000 kg Electrical Cabinet 2200 x 500 x 2000 mm 600 kg Features Milling Head F55.4 Power 24 kW RPM (infinitely variable) 15 - 315 min-1 Milling Range (C45) von 32 - 0,75 TPI Band Width 6 - 10 mm Clamping Width 60 mm Arbor and Cutter Milling Arbor (Steep Taper) Steilkegel ISO 50 nach DIN 2080 Arbor Diameter 11/2" bis 21/2" Tool Diameter Minimum 128 mm + 2 x Fr鋝tiefe Maximum 200 mm Tool Width 150 mm Travel Range X-Axis (table) 280 mm Y-Axis (milling head vertical) 230 mm Z-Axis (milling stroke) 370 mm B-Axis (helical teeth) 0 -3 Feed / Rapid Traverse X-Axis 0 - 3.000 / 10.000 mm/min Y-Axis 0 - 1.000 / 5.000 mm/min Z-Axis 0 - 3.000 / 10.000 mm/min Control Siemens 802 D Coolant Supply and 170 I mit integriertem Magnetfilerwalze Chip Removal System Machine Housing partially enclosed Options CNC controlled C-Axis Vertical coiling system H20-V for max. 20 bands or H40-V for max. 40 bands Vertical coiling system H20-V for max. 20 bands or H40-V for max. 40 bands
