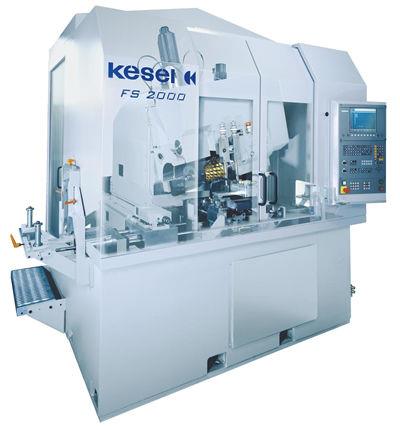

Bandsaw Blade Milling Machine FS-2000 CNC

With the development of the 4 axes special-design FS-2000 CNC, Kesel succeeded in advance a true "flagship" in the field of bandsaw blade milling machines. This robust machine is capable of milling .5 TPI with a 6 inch lo......With the development of the 4 axes special-design FS-2000 CNC, Kesel succeeded in advance a true "flagship" in the field of bandsaw blade milling machines. This robust machine is capable of milling .5 TPI with a 6 inch long cutter effortlessly. The machine is designed to mill band widths to 6 inches and tooth depths to .600 of an inch. The state of the art of the digital control offer s a high degree of programming flexibility to provide the best milling situation possible. The FS- 2000 CNC is fully equipped. The machine is totally enclosed and its safety inter locks ensure complete operator safety. It provides the absolute minimum in cycle times and optimal cutting conditions. New and total unique on the FS-2000 CNC is the leveling system. It can be precisely positioned via the CNC control to accommodate various pack widths. Description The FS-2000 CNC for band widths of up to 150 mm is equipped with the milling head F350. This machine type with a digital control, fully enclosed housing, band leveling device, coolant supply and chip removal system, and optional coiling system is a milling center for fully automated manufacturing of bandsaw bladeTechnical Data Dimensions Length x Width x Height Weight Machine 3570 x 2230 x 2510 mm 12.500 kg Electrical Cabinet 1800 x 600 x 2000 mm 500 kg Features Milling Head F350 Power 30 kW RPM (infinitely variable) 15 - 450 min-1 Milling Range von 32 - 0,5 TPI Band Width 15 - 150 mm Clamping Width 60 mm Arbor and Cutter Milling Arbor (Steep Taper) Steilkegel ISO 50 nach DIN 2080 Arbor Diameter 11/2" bis 21/2" Tool Diameter Minimum ?/td> 165 mm + 2 x Fr鋝tiefe Maximum ?/td> 310 mm Tool Width 240 mm Travel Range X-Axis (table) 195 mm Y-Axis (milling head vertical) 235 mm Z-Axis (milling stroke) 580 mm B-Axis (helical teeth) ?0?/ -2?/td> Feed / Rapid Traverse X-Axis 0 - 5.000 / 10.000 mm/min Y-Axis 0 - 5.000 / 10.000 mm/min Z-Axis 0 - 5.000 / 15.000 mm/min Control Heidenhain TNC 426 M Coolant Supply and 900 l mit integrierter Magnetfilterwalze und Chip Removal System Kratzbandf鰎derung Machine Housing Vollkapselung Options Digital control Siemens 802 D Vertical coiling system H20-V for max. 20 bands or H40-V for max. 40 bands Horizontal coiling system H20-H for max. 20 bands or H40-H for max. 40 bands
