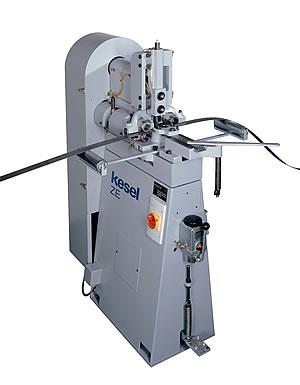

Kesel Punching Machine Model ZE

The machine frame and all functional parts are of a durable, oversized construction, rendering them suitable for the demands of continuous operation. The powerful ram saddle runs on prismatic, adjustable guides. All impor......The machine frame and all functional parts are of a durable, oversized construction, rendering them suitable for the demands of continuous operation. The powerful ram saddle runs on prismatic, adjustable guides. All important moving parts operate in accurately machined bearings, some of these have been manufactured from special high-grade bronze material. The Automatic Tooth Milling Cutter Model ZE has over recent years been optimized to such degree that an extraordinary level of production efficiency and precision are achieved in minimum maintenance and simplicity of operation. Design and cycle time of the machine have been harmonized with our Bandsaw Blade Setting Machine Model ZU, allowing both machines to be operated simultaneously with coils.1. Basic Machine Technical Details: Pressure force, continuous stroke approx. 4-5 t (dependet on speed and infeed) Ram stroke 16 mm Adjustability of upper punch 20 mm Input rating 0.55 / 3000 kW/Upm strokes per minute = teeth per minute 350-800 Maximum infeed = maximum tooth spacing 18 mm Minimum infeed = minimum tooth spacing 1 mm Maximum blade width 200 mm Minimum blade width (standard) 6 mm Maximum blade thickness (material thickness) 1.5 mm Maximum blade thicknesss at max. infeed 0.9 mm (18 mm) 60 tooth Maximum infeed for max. blade thickness 12 mm (1.5 mm) 60 tooth Maximum dimensions (H x W x D) 150 x 60 x 105 Net weight (incl. standard accessories) approx. 240 Kg Gross weight (incl. seaworthy packing) approx. 330 Kg Specification All bearings are lubricated by a manually operated central lubrication pump. The machine is driven by an infinitely variable geared motor via V-belt. The motor beeing housed in a welded column. Two perfectly harmonized pairs of rollers driven via crank disk and locking mechanism ensure accurate feeding of the saw steel which is synchronized with the ram stroke. The rollers are opened by activating a practical footswitch so that the saw steel may be loaded. Various practicable adjusting mechanisms for band feed and tooth depth guarantee even and parallel cutting of teeth.1.1. Standard Accessories 1 Set of ratchet wheels (5 pcs) for the manufacture of all regular spaces 1 Set (4 pieces) of cylindrical, hardened steel feeding rollers 1 Central lubrication unit 1 Machine tools 1 Operating manual 1.2. Special Accessories (if required) Special ratchet wheels for unusual tooth spacing Tooth cutting tools as required by customer 1 Pair of support rollers for processing of bands 1 Special pusher 2 Coiling System Type V 150 complete consists of: Pay-out System driven by machine Take-up System with loop control system and separate drive fully instralled with electrical box Coil ID 200 - 480 mm Coil OD 850 mm
