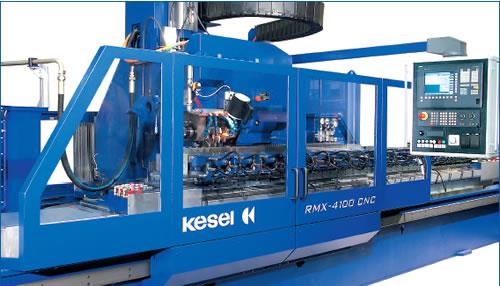

Rack-Milling Machine RMX CNC

Milling machines of the RMX-type series come in two versions, offering a gearing length of either 3200 mm or 4100 mm. There are two options for the milling head, type F250 (35 kW) or type F350 (37 kW). The Kesel RMX-type ......Milling machines of the RMX-type series come in two versions, offering a gearing length of either 3200 mm or 4100 mm. There are two options for the milling head, type F250 (35 kW) or type F350 (37 kW). The Kesel RMX-type series was based on the RMS-type series, and features a number of subsequent construction improvements such as a Z-stroke of 540 mm. This allows high-precision production of gear racks up to module 30 and any other work piece requiring precision linear indexing with a machining length of up to 4100 mm. In an effort minimize idles on shorter racks the RMX is designed for ”pendulum milling“, which greatly reduces idle time, by allowing the operator to unload and load one side of the machine, while milling on the other. Operator safety is insured through a variable door positioning system. The state-of-the-art computer numeric control (CNC) system offers highest programming flexibility and will satisfy even the most demanding requirements of the automotive industry. Zero back-lash drive units based on ball-bearing spindles and non-wearing high-performance gearing yield the highest results in tooth quality and running smoothness. All guides are made of hardened steel and have been smoothed with the highest precision to provide outstanding sliding and damping qualities.The swivel table allows adjustment of the milling head for helical gearings of up to 25 in both directions.
