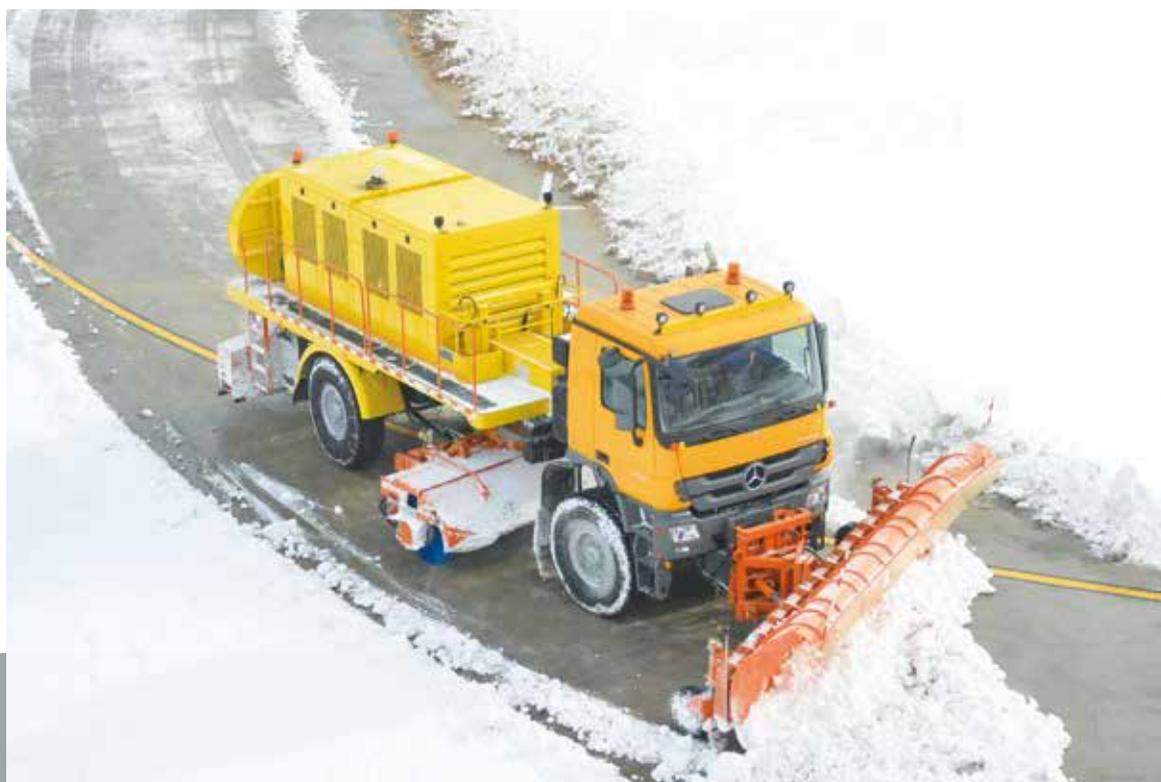

WGCX800J Snow Remover

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

WGCX800J Airport Snow Remover is designed for fast clearing the snow on the runway, taxi-way and other areas at the airport. The combination of the snow-ploughs, sweepers and blowing system can eliminate the snow completely from the surface of the ground.

Features

  • 4×4 drive chassis, with cold start ;
  • The push board is composed of 7 independent ploughs; each small plough has a unique 4-rod obstacle avoidance mechanism;
  • Aluminum-alloy roller brush shaft, with self- compensating coupling device and self-compensating function of the gap after the brush seedling wears out;
  • Equipped with high-power fan;
  • Blowing system;
  • CAN and PLC control.

Safety

  • Auxiliary engine water temperature protection;
  • Auxiliary engine oil low pressure protection;
  • Auxiliary engine filter block alarm;
  • Hydraulic oil low pressure protection;
  • Hydraulic high temperature protection;
  • Six emergency stop switches.
Product Parameters
MAIN CONFIGURATION OPTIONAL
Chassis SINOTRUK/Benz
Auxiliary Engine WEICHAI Telemetry
Main Pump Rexroth Electrically Heating Glass
Rolling Brush Motor Rexroth



PARAMETERS
Snow Plough Width 5,600/6,400 mm
Swing Angle ±32°
Snow Broom Width 4,200/5,300 mm
Rev 900 rpm
Swing Angle ±36°
Blowing System Air Flow 42,000 m³/h
Air Velocity 130 m/s

The data are applicable to the situation of snow thickness 30±5mm, snow density 0.6t/m³
