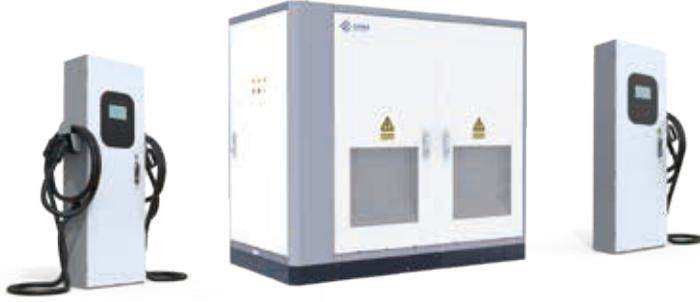

720/960kW Split Charging System

Product Name

Flexible Charging Stack

Dual-Gun Terminal

Single-Gun Terminal

Liquid-Cooled Single-Gun Terminal

Liquid-Cooled Dual-Gun Terminal

Model/Specification

EPDC-G720&960/1000

EPDC-S-2-250~400-A2

EPDC-S-1-250~400-A2

EPDC-S-1-600-A2

EPDC-S-2-600-A2

Total Power

720/960kW

Standard fast charging 250/300A

single gun rated power 240kW;

Extreme fast charging 400A terminal

single gun rated power 400kW

Standard fast charging 250/300A terminal

single gun rated power 240kW;

Extreme fast charging 400A terminal

single gun rated power 400kW

Rated output current 600A,

rated output power 600kW;

boost 800A,

800kW

Rated output current 600A,

rated output power 600kW;

boost 800A,

800kW

Input Voltage

380V±15%

Input Current

1093/1458A

Input Circuits

3/4 circuits

Frequency Range

50±1Hz

Power Factor

≥0.98

Charging Output Interfaces

720kW: 18 ports; 960kW: 24 ports

Output Voltage

200Vdc-1000Vdc

High-Power Interfaces

3

/

/

/

/

Auxiliary Power

/

12V (24V optional)

12V (24V optional)

12V (24V optional)

12V (24V optional)

Cooling Method

Intelligent air cooling

/

/

Liquid-cooled cable

Liquid-cooled cable

Efficiency

≥0.95

/

/

/

/

Noise

≤65dB

/

/

/

/

Current Stabilization Accuracy

≤±1%

/

/

/

/

Voltage Stabilization Accuracy

≤±0.5%

/

/

/

/

Output Current Error

≤1%; when current < 30A, error ≤±0.3%

/

/

/

/

Output Voltage Error

±0.5%

/

/

/

/

Current Harmonic (THDI)

≤5% (load ≥50%)

/

/

/

/

Operating Temperature

-20 ℃-65℃

/

/

/

/

Storage Temperature

-40 ℃-70℃

/

/

/

/

Operating Humidity

5% ~ 95%

/

/

/

/

Dimensions

(W*D*H)mm

2137mm*1071mm*1652mm

500mm*250mm*1450mm

500mm*250mm*1450mm

500mm*512mm*1500mm

500mm*512mm*1500mm

Weight

900kg

60kg

60kg

100kg

100kg

Basic Configuration

Ring + meter power distribution

/

/

/

/

Protection Rating

IP55

IP55

IP55

IP55

IP55

Basic Protection

Short circuit protection, over/under voltage protection, overcurrent protection, leakage protection, etc.

/

/

/

/

Remote Control

/

Supported

Supported

Supported

Supported

Time-of-Use Billing

/

Supported

Supported

Supported

Supported
